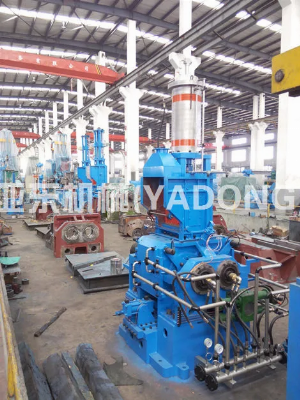

Product DescriptionThe machine is mainly used for mixing and plasticating of rubber & plastic.STRUCTURAL FEATURES: The internal mixers of this adopt elliptical tangential rotors. The wings and working surfaces of the rotors, the internal surfaces of the mixing chamber, and the working surfaces of the pressing RAM device and the discharging device are all coated on with wearable hard alloy by built-up welding method, which are durable and corrosion proof and have a long service life. The rotors, the mixing chamber and the discharging door are all structured with circulating channels to realize the circulation of heat transmission mediums. According to different processing requirements, the mixing materials may be heated by hot steam or cooled by cold water. The mixing chamber is a combined configuration, which is convenient for assembling, disassembling and maintaining. The drop-door discharge device is driven by two reciprocating oil cylinder which directly pull the locking plate to lock the discharge door. The device provides fast discharging and reliable airproof. The rotors are supported by rolling bearings, which are easy to maitain and have a long service life. The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission effciency, lower noise and longer service life. The pressing RAM device may be driven by pneumatic cylinder or oil cylinder to press onto the mixing materials to force them equally mixed so as to increase productive effciency. Mated with the electric controller, the pressing RAM device can automatically add pressure, release pressure or just keep floating. Both manual and automatic modes are arranged to operate PLC electric system. It is easy to exchange the modes and reliable to operate the controller Product Parameters Item ModelX(S)M-25x(10-100)X(S)M-50x40X(S)M-80x40X(S)M-90x(6-60)X(S)M-110x40X(S)M-110x(6-60)XM-160x30XM-160x(4-40)XM(N)-190x(6-60)XM-250x20XM-270x(4-40)XM-400x(6-60)Total volume of mixing chamberL26.5508087110108160147200253235(255)425Working volume of mixing chamberL2030605682.581120110140140176(191)319Speed of rear rotorr/min10-10040406-60406-6030-4-406-60204-406-60Speed ratio of rotorsm3/h1:1.161:1.151:1.151:1.11:1.151:1.151:1.161:1.161:11:1.161:1.17 /1:11:1.15/1:1Pressure of compressed airMpa0.6-0.80.6-0.80.6-0.80.6-0.80.6-0.80.6-0.80.6-0.80.6-0.8Hydraulic ram 0.6-0.80.6-0.80.6-0.8Consumtion of compressed airm3/h~15~20~35~140~60~60~70~70Hydraulic ram~40160-200~350Pressure of cooling waterMpa0.3-0.40.3-0.40.3-0.40.3-0.40.3-0.40.3-0.40.3-0.40.3-0.40.3-0.40.3-0.40.3-0.40.3-0.4Consumption of cooling water m3/h~8~10~25~25~35~35~45~45~60~23~100~150Driving motor powerKw132110220520250450355500110025012502x1250Dimensionmm 3070x3135x36505910x2510x32007000x2760x45007040x2865x41506620x2640x43927800x2855x43928000x3250x51809000x4000x52609000x4500x6007100x3905x495310060x5000x633011150x4960x7040Gross weight T ~7.8~14.85~23~23~24~24~37~40~45~55~59~76NOTE: The driven method is include Left driven and Right driven. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
