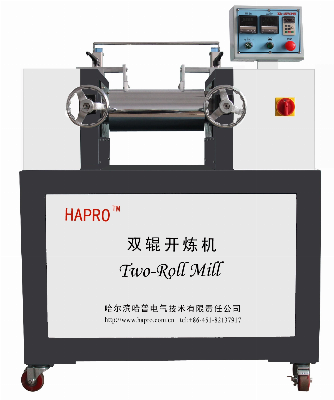

Two-Roll Mill

Two Roll Mill is one of the important equipment in plastic processing,It can make the raw materials and additives mixing well.The plasticizing with the opening mill is mainly through the shear and extrusion effect of two relatively rotating rollers on the rubber material, so that the original macromolecular chain of the rubber material is broken, so that the original elasticity of the rubber material is reduced and the plasticiability is improved, which is conducive to the following processing procedures. Design principleTwo rollers go around with a certain speed,they supply the shear force and temperature for sample.  Technical parameters:PhotographPerformance IndexPerformance Parameter Size of RollØ120mm×L350mm(Stander)Ø160mm×L350mmMaterial of rollerChromium molybdenum vanadium steelRoller Surface TreatmentChrome-plate with high rigidityDisplay ModeDigital DisplayMix weight0.5-1or 2 kgRoll gap0.1~5mm (adjustable)Temperatureroom temperature~300ºCTemperature controllerRKC from JapanAccuracy of temperature±2.5ºCAccuracy of working area±1.5 ºCHeatingElectric heating (include 3 parts heat)Control temperature methodP.I.DRoller Rotation Speed40 r/min,Double frequency modulationDriver of motorTaiwan Chengbang Speed Reducing MotorTotal power10 HPSafety DeviceReversible rollers (by kicking at the door can add some other safety device according to your requirements)Power supply3phase 380V,30AWeight~400 kgDimension (L×W×H)1000×560×1150 mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
