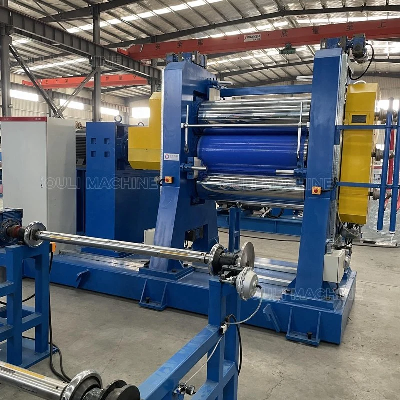

Rubber Sheet Product Making Machine 2/3/4 Roll Rubber Calender Machine

Rubber calender is the basic equipment in the process of rubber products, it is mainly used to put rubber on fabrics, to rubberize fabrics, or to make rubber sheet.Features:1. Rolls: chilled alloy cast iron rolls with surface hardness 68~72hs. the rolls are mirror finished & polished, duly grinding and are hollowed for cooling or heating.2. Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.3. Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete up to supply pipe terminal.4. Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.5. Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust sealed housing.6. Stand frame & apron: heavy duty steel casting.7. Gearbox: hard-tooth reduction gearbox, GUOMAO brand.8. Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately machined on which whole machine with gearbox and motor are fitted.9. Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch.Detailed Photos   Product Parameters Parameter/model XY-2-250 XY-2-360 XY-2-400 XY-2-450 XY-2-560 XY-2-610 XY-2-810 Roll diameter (mm) 250 360 400 450 560 610 810 Roll working length (mm) 720 1120 1200 1400 1650 1730 2130 Ratio of rubber speed 1:1 1:1 1:1 1:1 1:1 1:1 1:1 Roll speed (m/min) 1.2-12 3-20.2 4-23 2.5-24.8 2-18.7 4-36 2-20 Nip adjust range (mm) 0-6 0-10 0-10 0-10 0-15 0.5-25 0.2-25 Motor power (kw) 15 37 45 55 75 90 160 Size (mm) Length 3950 5400 5600 7013 7200 7987 8690 Width 1110 1542 1400 1595 1760 1860 3139 Height 1590 1681 2450 2460 2760 2988 4270 Weight (KG) 5000 11500 12500 14000 24000 30000 62000   Parameter/model XY-3-250 XY-3-360 XY-3-400 XY-3-450 XY-3-560 XY-3-610 XY-3-810 Roll diameter (mm) 250 360 400 450 560 610 810 Roll working length (mm) 720 1120 1200 1400 1650 1730 2130 Ratio of rubber speed 1:1 1:1 1:1 1:1.5:1 1:1.5:1 1:1.4:1 1:1:1 Roll speed (m/min) 2-15.9 3-20 3-26 2.6-26.2 3-30 5.4-54 3-30 Nip adjust range (mm) 0-6 0-10 0-10 0-10 0-15 0.5-25 0.2-25 Motor power (KW) 22 45 55 75 110 160 132x3 Size (mm) Length 3950 5400 5600 7013 7200 7987 8690 Width 1110 1542 1400 1595 1760 1860 3139 Height 1810 2440 2520 2900 3800 3950 5050 Weight (KG) 5500 14000 18000 21000 35000 42000 110000   Parameter/model XY-4-230 XY-4-360 XY-4-400 XY-4-450 XY-4-550 XY-4-610 XY-4-810 Roll diameter (mm) 230 360 400 450 550 610 810 Roll working length (mm) 630 1120 1200 1400 1500 1730 2500 Ratio of rubber speed 1:1:1:1 0.7:1:1:0.7 1:1.4:1.4:1 1:1.5:1.5:1 1:1.5:1.5:1 1:1.4:1.4:1 1:1.4:1.4:1 Roll speed (m/min) 2.1-21 2-20.1 3-26 2.5-25 3-30 8-50 4-40 Nip adjust range (mm) 0-10 0-10 0-10 0-10 0-15 0-10 0-10 Motor power (KW) 15 55 75 110 160 185 132x4 Size (mm) Length 2800 3300 6400 6620 7550 7880 11400 Width 930 1040 1620 1970 2400 2560 3900 Height 1890 2350 2490 2740 3400 3920 5140 Weight (KG) 5000 16000 20000 23000 45000 50000 130000   Our AdvantagesManufacturing TechniqueExcept rubber calender  machine , we have many other products related with rubber production.Such as Rubber kneader,Rubber Bale Cutter, Batch-off Cooling Machine , Rubber Extruder, Tube Extruding Line,Tube Curing Press Machine, Waste Tire Cutting Machine ,Rubber Crusher ,Rubber Powder Grinder ,Reclaimed Rubber Refining Mill ......                                                         About the Package and delivery Standard Seaworthy PackageWe have professional equipment and workers to pack your products well and keep them intact in transit. Company Profile   Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city,Shandong province, China.We are specialized in rubber machinery designing,manufacturing and maintenance work.OULI main products:1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.3. Automatic and semi-automatic waste tire recycling equipment4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.7. Paper roll cutting machine.Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil.We warmly welcome customers visit our factory and technology discussion i
