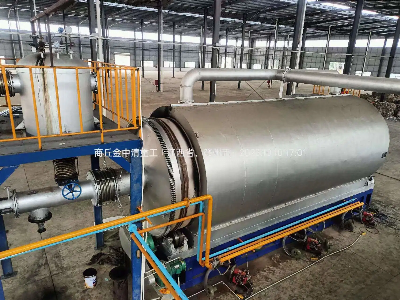

Tire Recycling Machine Pyrolysis Oil Plant

1.Working Theory of Waste Treatment EquipmentNo.NameParameter1The Raw Materialsolid waste/ waste rubber/ waste plastics/ waste tyre2Total Capacity5t/day, 10t/day, 12t/day, 50t/day3The size of reactor2.6m*6.6m, 2.6m*7.7m, 2.6m*8.8m, customized4Average oil productivitytyre:40%-50%,plastic:60%-70%5Average carbon productivity30%-35%6Average steel productivity10%-15%7Average waste-gas productivity5%8Pyrolysis time8h9Discharge time3h10Feeding timme1hThe special continuous soil remediation equipment for the oil field can forma temperature environment of 200 ~ 500C in different regions under thecondition of no oxygen but with heat supply by heating system. By doingso, it can analyze and recycle most of the oil in the oily sludge, and pyrolyzesome organic matter to produce combustible non-condensable gas. Thegas will be burned in the combustion system with independent air supplyto supplement heat as the second heat source, so as to make the pyrolysisreaction continue. The whole reaction process is low temperature, lowpressure (micro negative pressure), mild, safe and controllable. The pyrolysisreaction is environmentally friendly and with good economic benefits.Firstly, the hot gas and air do not directly contact with oily sludge, so thereis no anaerobic reaction, no dust, dioxin or other pollutants. Secondly,this reaction can fully recover the oil in the oily sludge, and the generatedpyrolyzed gas can supplement the heat energy consumption. Thirdly, thetreated products are inorganic carbon particles, and heavy metals and otherpollutants are chelated in the carbon structure, which can be landfilled orreused in an environmentally friendly manner. Therefore, the whole pyrolysisrealizes recycling, which is environmentally friendly and highly economical.2.Main PartsConfiguration sheet: pyrolysis main furnace, heating system skid (includingheavy oil combustion gun *2, waste gas combustion gun *4, fan *1), postslag removal system, drum skid, fractionation tower, condenser *4, heavyoil tank, transfer oil storage tank *2, oil pump, spray tower *2, fan, flowseparation sedimentation tank (on-site Civil Engineering), combustiblewaste gas treatment system (including damping tank, adsorption tank,overflow tank, water seal), waste gas combustion chamber (on-site CivilEngineering) Distribution cabinet, circulating water tank, cooling towercirculating water pump, etc.  Name    Photo  SpecificationsQty1. Distillation systemChamber Capacity:about20-25/ DSize:Φ2600*8800mmMaterial:Q245R Boiler steel Thickness: 16mmWorking P:
