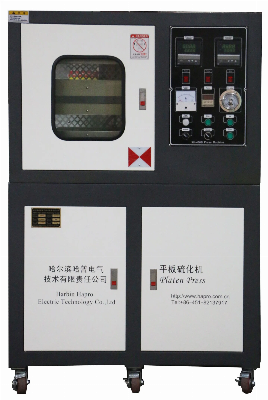

Laboratory Automatic Hot Pressing Machine

Instrument useRaw materials are placed into a mold and are clamped between electric heating flat plates of the machine; with pressure and temperature, materials are formed into the needed shape for experiments.1.2 Design principleA hydraulic pump driving pressure, and temperature generated by heater, shaping the specimen in the mold cavity  Technical parameters:PhotographPerformance IndexPerformance Parameter All pressure30T(adjustable)Temperatureroom temperature ~300ºCTemperature controllerLED show temperature valueHeating methodElectric heatingTotal power7 kWPower supply voltage3 phase , 380VCooling methodNature water coolingAccuracy between board±1ºCAccuracy temperature≤±1.0ºCDissipation heat≤±1.5ºCTimerLED 0~99(H)Size heating board300×300mmSize cooling board300×300mmWorking floors2Open modelautoDistance between board0~90mmRange of hydro cylinderMax. 250mmSpeed of hydro cylinder14mm/sMotor5 HPSafety partposition in the doorDimension (L×W×H)1550×1320×600mm/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
