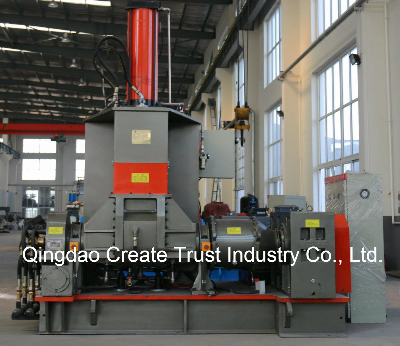

Hot Sale Ce SGS ISO9001 75L Rubber Kneader/Internal Mixer/Banbury Mixer

Hot Sale with CE SGS ISO9001 75L Rubber Kneader/internal mixer/banbury mixerMixing chamber:It consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.Thermal Resistance:There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperate.Rotor:It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.Cooling/heating system:A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top ram.Tilting mechanism:It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc...It is able to actuate the mixing chamber tilting by 140° Around the front rotors.Dust sealing device:At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.Main driving system:The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.Pneumatic control system:(the motor is Siemens brand)Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the ram up or down. In case the over load occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.Electric control system:Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.Advantages:(1)Maximum Dispersion & High ProductionDouble blades, proper clearance & high cooling effect gives excellent dispersion , Its production is 4 to 5 times  thus saving on labor and  the electricity about 30%.(2)No Foundation RequirementThe Kneader has a common bed plate for all parts and not require foundation. (3)Easy Cleaning & Colour ChangeMixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made without trouble. About us: We,Qingdao Create Trust Industry Co., Ltd.make good quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent after sale service, we hope to be one reliable factory for you!Technical Parameters:    Details parameters of banbury and internal mixer machineTypeX(S)N-3*32X(S)N-10*32X(S)N-20*32X(S)N-35*30X(S)N-55*30X(S)N-75*30X(S)N-110*30X(S)N-150*30Total Volume of kneading chamber8254575125180250325Total Volume of mixing chamber31020355575110150Driving motor power5.515305575110185220Tipping motor power0.551.11.52.23.04.05.55.5Tipping Angle135°140°140°140°140°140°140°140°Rotational speed of the rotor0~60,32/24.530/23.530/2530/24.530/24.530/24.530/24.530/24.5Flow rate of compressed air0.5-0.80.5-0.80.5-0.80.5-0.80.6-0.80.6-0.80.6-0.80.6-0.8Flow rate of compressed air≥0.3≥0.5≥0.7≥0.9≥1.0≥1.0≥1.5≥1.5Pressure of Cooling water0.2-0.40.2-0.40.2-0.40.3-0.40.3-0.40.3-0.40.3-0.40.3-0.4Pressure of heated steam0.5-0.80.5-0.80.5-0.80.5-0.80.5-0.80.5-0.80.5-0.80.5-0.8Overall dimensions(LxWxH)1660*960*17502580*1300*22802630*1520*25503200*1900*29453360*1950*30503760*2143*31554075*2712*35804200*3200*4000Weight20003300450065007200100001450019500pictures:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
