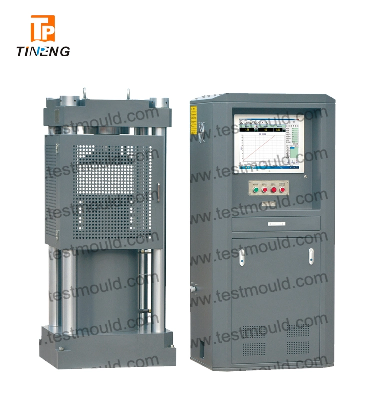

electric-Hydraulic Servo Automatic Compression Testing Machine

2000/3000kN Eletric-Hydraulic Servo Automatic compression testing machineFeatures:    Hydraulic loading, electro-hydraulic servo technology. Used for testing the compressive and fl exural strength of cement, concrete and other building materials. It can be carried out in accordance with the corresponding standard as setting loading rate. Load capacity, time and test curve are displayed dynamically, and control timely and maxmimum test force hold function.    Compressive strength, flexural strength and other mechanics test data can be calculated and printed by the control software automatically.    Suitable for testing 50mm, 100mm, 150mm and 200mm cube samples as well as cylinder samples with 75 -160mm diameter and 150-320mm height.    Pressure safety valve, piston limit switch, removable front and rear gates are standard in all models. Upper compression platens have ball seating assembly for movement in all models. All compression platens have a surface hardness of 50 HRC.  CodeHYE-2000BHYE-3000BMax load capacity:2000kN3000kNAccuracy classClass oneClass OneSpan of colum400 mm440 mmCompression space:360 mm400 mmPiston stroke:200 mm200 mmSize of compression plates:Dia. 300mmDia. 300 mmDimension (load frame):640×560×1500mm720×720×1800 mmPower(kW):380V, 50Hz, 2.0kW380V, 50Hz, 2.0kWWeight(kg):1500 kg2700 kgEnglish software:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
