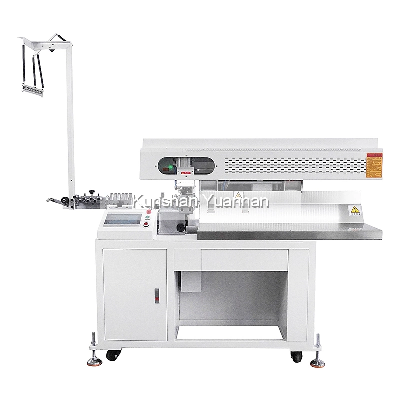

Outer Jacket Stripping Cutting Machine Single Conductor Cable Cut Strip Machine

Outer Jacket Stripping cutting machine Single Conductor Cable Cut Strip MachineThis high speed wire cutting stripping machine is suitable for processing USB, AC, RGB, 1394, DC power cables and so on with high efficiency. It can process wire cutting, both ends stripping, single end stripping and half stripping with high speed. Applicable wire sizes range from AWG#10 to #28.Model: YH-950  Brand: Yuanhan  FeaturesThis machine is suitable for processing USB, AC, RGB, 1394, DC power cables and so on. The external machine and wire dividing device can be used synchronously, which greatly improves production efficiency.Applicable wire sizes: AWG#10~#28 This machine can process wire cutting, both ends stripping, single end stripping and half stripping with high speed.It adopts servo motor to control wire cutting and peeling, so that the cutting length and peeling length are more accurate.The change of stripping length, the change of full stripping and semi-stripping can be set quickly and easily.The speed can be set according to wire size.950mm, 1300mm, 1600mm, 2100mm wires and cables can be cut and stripped at the same time with high efficiency.Specifications:   Model YH-950  Power   1.0KW  Power SupplyAC 220/380V  Stripping Length 3~100mm Cutting Length  42~99999mm Wire TypeUSB, AC, RGB, 1394, DC, PVC, etc.Wire SizeAWG#10~#28  Dimension 1700*750*1500mmWeight400KGWe have other sizes of wire cutting and stripping machine for your choice!Name/modelLarge square computer wire stripping machine YH-8030Large square computer wire stripping machine YH-8070Large square computer wire stripping machine YH-8120Large square computer wire stripping machine YH -8120X rotary knifeLarge square computer wire stripping machine YH -8300Display method7 inch true color touch screen7 inch true color touch screen7 inch true color touch screen10-inch true color touch screen10-inch true color touch screenFeaturesWire, cable, fully automatic cutting and strippingWire, cable, fully automatic cutting and strippingWire, cable, fully automatic cutting and strippingRotary knife peeling (different specifications cable, no need to change tools), Fully automatic wire stripping, multi-layer stripping of cable lines, first strippingMulti-station skinning (V knife/round knife piercing)Wire typeWire, cable, PVC, etc.Cable, PVC, sheathed wire, etc.Cable, PVC, sheathed wire, etc.Cable, PVC, sheathed wire, etc.Fully automatic cut off and stripping cable, sheath cable. Etc.Stripping range4-30  square10  -70  square10-120  square 10 square - 120 square30 square-300 squareCut length1mm-99999.99mm1mm-99999.99mm1mm-99999.99mm150mm-99999.99mm10mm-99999.99mmCutting toleranceWithin 0.002*L (L=cut length)Within 0.002*L (L=cut length)Within 0.002*L (L=cut length)Within 0.002*L (mm) (L=cut length)Within 0.002*L (mm) (L=cut length)Stripping lengthFront Stripping : 1- 120mmFront stripping: 1 - 800mm (wire head)Front stripping: 1 - 800mm (wire head)Front stripping: 1-120mm (special custom peelable more than 1000mm)Front stripping:1-1000mm(head)Tail stripping: 1- 190mmTail stripping: 1 - 260mm (end of line)Tail stripping 1 - 260mm (end of line)Tail stripping: 1- 270mmTail stripping::1-300mm (Tial)Maximum diameter of the catheterΦ16Φ 25Φ30Φ7~30mmΦ15~50mmTool materialHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelHigh quality imported high speed steelProductivity (times / hour)2300PCS/hour (depending on the length and size of the line)1800pcs/h (depending on the length and size of the line)1800pcs/h (depending on the length and size of the line)100-700pcs/h (depending on the length and size of the line)100-700pcs/h (depending on the length and size of the linepower supply220V 50HZ220V 50HZ220V 50HZ220V 50HZ220V  50HZPower1.5KW1.5KW1.5KW4KW11.7KWDrive mode16-wheel drive (silent hybrid stepper motor, servo tool holder)32-wheel drive (silent hybrid stepper motor, servo tool holder)32-wheel drive (silent hybrid stepper motor, servo tool holder)48-wheel drive, full servo motorWire feed: 32 wheels, each group of independent servo driveKnife rest: double servo and double screw Wire feeding methodBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feeding line, no embossing on the cable without scratchesBelt feed, no imprint or scratch on the cableRemarksSpecial cable can be customized, sample line test is requiredSpecial cables are customizable and sample line tests are required. If the tail end is stripped, the total length of the cut line should not be less than 150mm, and the total length of the cut line is less than 150mm. The machine can be customized.Special cable can be customized, sample line test is requiredsample line test is required Product Pictures   30 square sheathed wire cutting and stripping both inside and outside.   All-i
