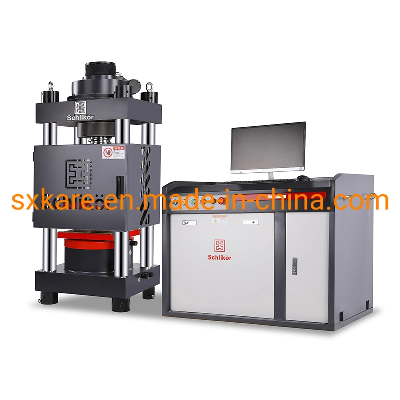

Ctm Computer Control Compressive Strength Compression Pressure Test Testing Machine (YAW-2000)

YAW-2000 Computer Control Electro-hydraulic Servo Compression Testing Machine  UsageYAW-2000 computer control electro-hydraulic servo compression testing machine is mainly used for the compressive strength test of cement, concrete, high strength concrete samples and components and other building materials products. With appropriate fixtures and measuring devices, it can meet the splitting tensile test, bending test, static pressure elastic modulus test of concrete. It can automatically get the result parameters of the relevant standards.  Structure introductionThis machine is composed of a load frame and a oil source control cabinet. The test machine adopts four column frame design, which has simple structure and good stability. The test space is adjusted by motor screw.  Main characteristicsLoad cell measuring: adopts high precision sensor, with advantages of good linear repeatability, strong shock resistance, stable and reliable, and long life.Load mode: computer control automatic loading.Multiple protection: dual protection of software and hardware. The piston stroke adopts over stroke electric shutdown protection. Automatic shutdown protection when the load exceeds 2 ~ 5% of the maximum load. Space adjustment: the test space is adjusted by motor screw.Test result: All kinds of test results can be obtained automatically according to user's requirements.Test data: Access database is used to manage the testing machine software, which is convenient to query the test report.Data interface: The database interface is reserved in the software, which is convenient for the laboratory to upload data and test data management.Structure composition: composed of a load frame and an oil source control cabinet, reasonable layout and easy to install. Control mode: adopts force closed-loop control. It can realize equal load rate loading or equal stress rate loading.Safety protection: The design of the door type protective net ensures the safety of the test personnel, and no one will be hurt when the specimen bursts.  Main technical parametersMax. test force2000KNAccuracy1Measuring range4%-100% FSTest force indicating relative error≤±1%Load speed0.3kN/s - 20KN/sControl modelComputer control automatic hydraulic loadingPlaten sizeφ289mmMax. distance between platens360Column distance between tow columns330mmMax piston stroke90mmMortar power1.5kWPowerAC380vOutline dimension500*630*1640mmOil control measuring cabinet size1000*550*780mm  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
