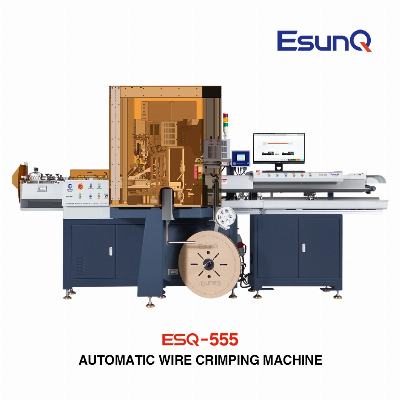

High Quality Wire Harness Processing Automatic Terminal Crimping Machine

Automatic Wire Crimping MachineESQ-555 is able to do fixed-length cable/wire cutting, single/double end half-stripping or full-stripping, single/double end crimping, waterproof plug threading, number dialing, and Wire Conduit/heat shrink tube threading. And all processes can be completed synchronously.ESQ-555 adopts an opened multi-stations platform, with a computer-controlled operating system, so it can manage production procedures more convenient than any before. Also it has a high-speed control system, rigid driving mechanism, precision servo motors and pneumatic components. In this Case, the equipment's performance is stable, reliable and precise. For safety and accurate operation, ESQ-555 Automatic Wire Crimping Machine furnished with automatic glass chamber, and CCD visual detection for wire harness, as well as crimping pressure online detection system. With these configurations, engineers can check the working status of the equipment online in real time.Technical DataModelESQ-555ESQ-555APower SupplyAC380V/50-60HzCustomizedTotal Power13Kw (Max) Capacity1000-5200 Pieces/hour (Min. Length) Compress Air 0.5-0.7 Mpa Air Consumption170NL/min Wire Cuttable Length50-9999mm Cut Off Precision≤1000mm,  ±1mm,  ≥1000mm, (+0.2% x L) Stripping Length0.1-16mm Machinable Wire Diameter x 20.13-6.0m2  (AWG6-AWG10) Wire Feeding Speed8-12m/s (Max) Crimping Ability20KN (Can be Customized) Crimping Distance30mm  (40mm Optional) Ambient Temperature0-40ºC Machine SizeL3720 x W1450 x H2010mm (2850mm) Machine WeightApproximate 1000Kg Optional PartsSeal Station, conduit station, visual module of crimper, puller, magnifying glass, micrometer, safety coverAbout EsunQ And JMK CompanyEsunQ, is a brand of Shenzhen JMK Electromechanical Co.,LTD, specializing in automotive wire harness processing equipment solutions, R & D and manufacturing. Provide customers with pneumatic card mold, automatic crimping machine, terminal shell inserting machine, FAKRA wire harness. Innovative harness processing equipment such as dynamic production line, Ethernet intelligent production line, intelligent all-in-one machine for new energy high-voltage line, non-standard automation, etc., After years of continuous exploration and progress, EsunQ company has won a number of software copyright, invention and utility model patents, service outlets are distributed in Shenzhen, Suzhou, Huizhou, Qingdao, Hubei and other places. Automobile wire harness processing: pneumatic card mold, automatic crimping machine, terminal shell inserting machine,Fakra Intelligent Production Line SeriesEthernet Intelligent Machining CenterNew Energy High Voltage Production LineWire Crimping Machine • Terminal Insertion • Pneumatic MouldFakra • Ethernet • New Energy High Voltage Production Line • Nonstandard Customization      F A QQ1: What can this machine be used for? A1: ESQ-555 Automatic Crimping Machine is perfect wire harness processing equipment, can complete wire cutting, stripping and terminal crimping in one step.Q2: What is the main application area of this machine? A2: It is widely used in industries with high requirements for wire harness processing, such as automobiles and electrical appliances; accurate, efficient, fully automatic.Q3: How Much Daily Output Of Automatic Crimping Machine? A3: It can do max 5200 pcs / hour, which mean around 62400 pcs per day.Q4: How long will it take for the machine to be completed and shipped after the order is placed? A4: The design and production of our machines are modular, and the corresponding mold can be designed according to the product requirements, which can be delivered in about 15 days; if it is not customized, it will take about 35 days.Q5: What kind of after-sales service can you provide? A5: We promise an one-year warranty (excluding vulnerable parts such as cutters, moulds and drive belts), free accessories and technical support during the warranty period, response time no more than 12 hours, and provide technical services and paid door-to-door maintenance services for life (after the warranty period).  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
