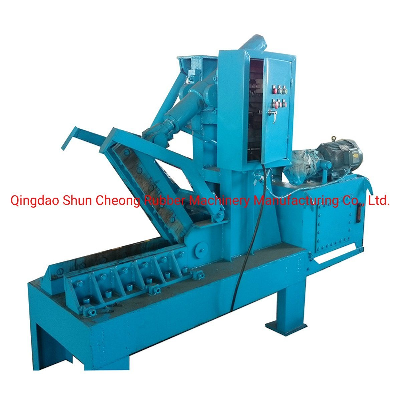

Waste Tyre Cutting Machine / Rubber Block Cutter / Rubber Tyre Cutter

Waste Tyre Cutting Machine / Rubber Block Cutter / Rubber Tyre CutterAutomatic Production Line ProcessWaste Tires-→Single Hook Debeader-→Tire Cutter-→Whole Tire Shredder-→Rubber Crusher -→Oscillating Screen, Conveyor Belt, Magnetic Plants-→Fiber Separator -→Fine Rubber Powder Pulverizer-→Rubber PowderUsage:the machine is mainly used to grinding waste rubber , tire , tube , flap and break the raw rubber materials.  Structure and Characters:It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.   Features:1. The roll is made of chilled cast iron of vanadium and titanium alloys. (Rolls of G model are made of high grade steel with hard alloy welded on the surface.) 2. The roll face is hard and anti-wear. Both the front roll and the back roll are fluted. The internal cavity of the roll is processed to ensure temperature well proportioned on the roll surface.  3. The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading. 4. By LTG rollers - cold hard cast-iron security, its surface hardness is made, 68 ~ 75 HS grinding and smooth surface. Inside the hollow cylinder for use, can according to the requirement, the steam and cooling water is used to regulate the temperature of the rolls. Two rolls with different relative rotation speed, rubber roller into two broken sewing machinery in the process. 5. The machine is equipped with overload protection device and emergency braking device. Thetransmission system adopts either hard booth flank dual axis reducer or new hard tooth flank planet reducer which has compact structure, low noise and high efficiency.    ItemXKP400XKP450XKP560Diameter of front roll(mm)400 (smooth)450(smooth)560(smooth)Diameter of back roll(mm)400 (groove)450(groove)510(groove)Working length(mm)600650800Linear speed of front roll (m/min)17.3223.225.56Ratio1:1.381:1.381:1.30MAX gap(mm)101215Capacity(kg/h) for 30 mesh rubber powder200-300400-600700-1000Motor power(kw)455575Dimension (l*w*h)(mm)3950*1800*17804770*1846*18355064*2284*1978Weight (kg)70001100019000We can design various kinds of non-standard rubber machinery according to your requirements.Waste Tires Slitting MachineStrip and Block Combinated CutterFAQ:1.Question:  Are you a factory or trading company?    Answer:  We are factory.2.Question:  Where is your factory?How can i visit ?    Answer:  Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.3.Question:  How does your factory control the quality of machines and after sales service?    Answer:  Our machines passed CE,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.4.Question: What's your payment term?   Answer:  Common is 40% deposit by T/T,the balance paid against shipping documents.Or L/C at sight.5.Question:  Can you design new product for us?    Answer:  we have a professional development team that make new products according to your requirements.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
