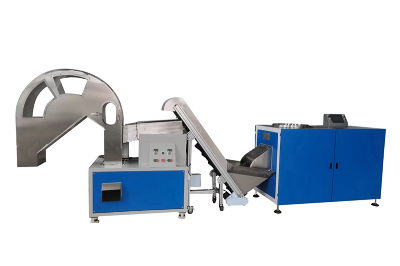

Air Blowing Separator Spin Trim Deflashing Machine

Continuous and Automatic Process of Spin Trim Deflashing for Rubber Components Flash RemovalSPECIFICATIONSSpecificationSpin Trim Rubber Deflashing MachineModelPG-ST-337Power Supply5.5KW 3ph 380V 50/60HzSize1890*660*1320mmWeight290kgGas supply0.4mpa-0.6mpaWheel Speed0-6000rpmProcess efficiencyabout 2kg-3kg per batchBatch Time60-90seconds/ batchFlashes SeparatingVibrator Separating or Air Blwing SeparatingUsageAll kinds of O rings or GasketsOperation ModeTouch ScreenA whole layout of the automatic spin trim deflashing system.System Description-- Spin trim deflashing machine can spin out the thin or big flashes with high-speed centrifugal spinning force, the parts which have tear trim line will be better.No matter regular shape parts like O-ring, gaskets, but also irregular shape parts like bumper, caps, sleeves, bushes or blocks, all can be efficiency spin deflashed by the spin trim deflashing machine.generally the efficiency is around 2-3kg per batch, and about 60-90seconds per batch.-- Air bowing separator use the high-speed air flow to blow out the flashes which are much lighter than the part, the product and flashes can be separated according to the different density and size by using the difference of suspension speed between main part and flashed--Various part and flashes are available, and more efficient.--A lifter is an good tool and connection for the user to connect from spin trim deflashing machine and the separator, to save time, labor and be more automatic. The products and flashes or burrs are lifted and transported directly to the air blowing separator to realize a on-line deflashing and burr separation process.SPIN TRIM RUBBER DEFLASHING MACHINE PRODUCT DESCRIPTIONDesign PurposeRemove waste edges/flashes of rubber parts automatically and in a cost-effective way.Operation PrincipleThis machine using centrifugal principle, the inner cylinder with automatic control of high-speed rotating disk driven rotating rubber products constantly collide, making edges and rubber products separated from each other, so as to achieve the function of removing burrs.ApplicationsAll kinds of rubber parts for a wide range of industry fields.Ideal for use in the automotive, oil and gas, aerospace, medical, electronics, and general rubber sectors.Product Features1.PLC & HMI control, a plug-and-play equipment, 7.5inch touch screen, user friendly operation panel.2.Not freezing, no need liquid nitrogen, no molds requirement, only basic labor and electricity, very low manufacturing costs3.Extremely high output, average as 15~20 workers at the same working time, millions of products can be finished per day4.Ideal for the effective deflashing of small to medium size rubber parts, especially for the O rings.5.Divided space room for filling & operation respective, realizes a continuous production6.Patented Cutting Technology for Closet Wet Trim. A safe, affordable and automated process7.Automatic Self-Lubrication System for Non-stop Trimming8.High power and speed motor to ensure reliable performance and stable running. WORKSHOPCUSTOMER SITEPACKINGSHIIPPING  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
