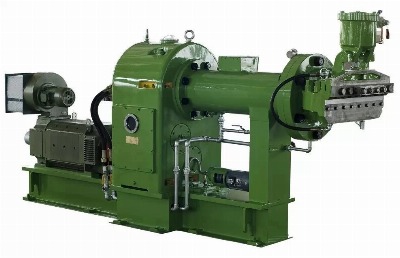

Pin Barrel Cold Feed Rubber Extruder

PIN-BARREL COLD-FEEDING RUBBER EXTRUDER Product Description Usage: It is mainly used for continous extrusion of various of rubber profiles and rubber feeding for calender. Features: 1. The barrel is composed of several zones. The spiral slots is made in the feeding zone of barrel to increase the feeding capacity working together with feeding rolls, different number of pins are fitted which enhance mixing and plastic capacity for extrusion material in the plasticity and extrusion zone, . 2. The screws and barrels are made of high quality alloy steel with nitrogen hardening which makes it more wear-resistant and more corrosion protection. 3. The temperature each zone may be automatically probed and controlled by hot water circulating device with good sensitivity, and can be adjusted according to requirement of process. 4. The extruder is driven by a change frequency motor or D. C motor, which achieve continuous and smooth speed regulation. 5. For adopting of higher efficiency screw and pin-barrel, the extruders have better mixing and plasticating result, higher extrusion capacity, and lower temperature for rubber, the output of production and the quality of product are raised. Data / ModelXJD-90X14DXJD-120X14DXJD-150X16DXJD-200X12DXJD-200X16DXJD-250X12DXJD-250X16DDiameter Of screw(mm)90120150200200250250L/D14:114:116:112:116:112:116:1Max. speed of screw(r/min)60504333332626Size of feeding hopper (LxW) (mm)120x80160x110200x165260x210260x210340x208340x208Row quantity of pins810108121012Pin quantity per row66810101212Hot water circulating zones3344444Total power for hot water heating24364848544848Capacity (kg/h)360100018002600260030003000Motor power (kw)5590220280315400450Overall dimension(mm)L2300325038804900620054006077W950125017001900190024002400H1450165017001850185019201920Weight (kg)32505670725014000146001800020800 Certifications Our Advantages WHY CHOOSE US?-Qingdao Chaoguangyue Industry Co.,Ltd established in 1971,we are specializing in producing rubber machines,and we had a great feedback from our customers.-Superior quality:we have obtained ISO9001,CE,SGS certification,we can guarantee the quality of the machines.-All adopt 35CrMo material hardened surface reducer,it has the advantage of low noise,large transmission power,wear,impact resistance,adopt quenching gear for transmission to improve machine's life.-Fast delivery time:within 20 working days.-Competitive price compared with others with the same quality.-Comfortable after-sales service:Quality problems of our machines will be attached high attention,we will response within 24 hours and we will solve the problem ASAP.-Great supports for marketing.  FAQ BUSINESS FAQ1.Q:Are you a trading company or a factory?A:We are 100% real manufacturer,we have more than 30000 square meters of factory buildings and workshops for producing machines,welcome to visit our factory.2.Q:Do you have machine warranty?A:Yes,we have 2 years warranty,however,the using life of our machines is usually more than 10 years.3.Q:I have special requirement about machines,such as length,diameter,or others,can you meet it?A:Yes,we can manufacture various non-standard specifications of machines,if you have special requirement,please contact us.4.Q:I want to purchase your company's open mixing mill,can you send me a quotation?A:Sure,please tell me the model of the open mixing mill  that you need,I will provide you a suitable price.If you don't know which model suits you,contact me,I will recommend a suitable machine to you.5.Q:What's your payment term?A:30% of total value in advance by TT,a further 70% will be paid before loading.6.Q:What's your MOQ?A:The MOQ is 1 set,but if you order more than 1 machine,you will get different discounts according to the quantity.7.Q:How is the safety of your machine?A:Our rubber open mixing mill can equip four kinds of safety protecting devices:pole-type safety device,push botton safety device,chest touch safety device and treadle type safety decive.These devices can protect workers' safe.If you have any questions about our machines,please contact me any time and I'm glad to provide service to you!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
