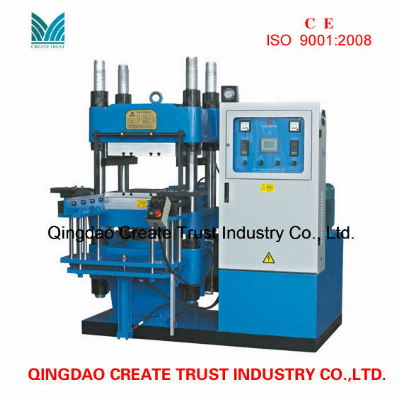

Full Automatic Plate Rubber Vulcanizer (ISO/CE standard)

Model No.: CXY-1000B Name : Rubber vulcanizing machine, Rubber vulcanizing pres,Rubber curing press,Plate vulcanizing press,Plate vulcanizing machine,Rubber hydraulic press.Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products. FEATURES1- High precision for temperature,tolerance is +_1 degree   2- No oil ,pressure leakage,very seal completely. 3- PLC automatic control, also we design manual control is available too. 4- You can set the time and temperature , automatic control, when reach the time, the machine will stop heating ,automatic discharge for the pressure. Parameters below :     ModelCX-Y630CX-Y1000BCX-Y1000ACX-Y1600CX-Y2000CX-Y2500CX-Y3500  Mold-locking force(KN)630100010001600200025003500  Max. working pressure(Mpa)21212123212123  Block stroke(mm)300300300300300400500  hermo-plate size(mm)Electricity hot plate emigration360*400450*450500*500520×540600×600700×7501050×1000 pinban/liangan360*400450*450500×500500×540550×600680×750980×1000  Max.distance of thermo-plate(mm)300300-480300-480300-480300-480400500  Motor power(kw)44+2.24+2.24+2.25.5+35.5+35.5+5.5Notel Abote data are subject to change without notice.Service of us 1- We can design whole line machine for EVA sheet production. We also provide techncial for EVA sheet production, our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .2- The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.All we do is for longterm cooperation , " CREATE TURST" !/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
