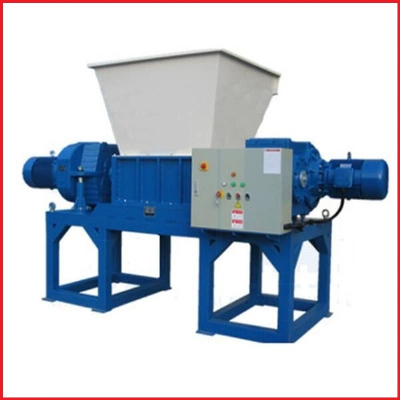

Double Shaft Waste Rubber/Used Tyre Cutter

Double Shaft Waste Rubber/Used Tyre CutterDouble shaft cutter is through the cut, tear and squeezing, reaching to decrease the size of raw material.Cutter is used for cutting, crushing and recycling of waste rubber and used tyres in a convenient manner. Our milling machine is made and designed by using quality approved materials under the strict supervision of professionals, as per the standards laid down by regulatory bodies. The Characteristics of cutter:1. High production efficiency;2. Mechanized or automatic feeding way;3. High automation degree.   The working principle:Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft  drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materials, and repeating this move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw material is too big, Machine will inverted running and stop, avoid damage of blades or motor.  To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.Technical parameters: ModelPower(kw)Capacity(kg/h)Quatity of bladesInlet size(mm)Blades diametersΦ200*20   FM-5007.5-11400-60020800*600FM-6007.5-11500-80022800*600FM-80011*2600-1000301000*800FM-10015*2700-1200301200*800Blades diametersΦ200*20   FM-80015*2800-120024800*1200FM-100022*21000-1500301000*1500FM-120022*21500-2000361500*1800FM-150030*22000-2500481500*2000Blades diametersΦ400*40     FM-80015*21000-150018800*1200FM-100030*21500-2000221000*1500FM-120045*22000-3000281500*2000FM-150055*22500-3500361500*2000Photo:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
