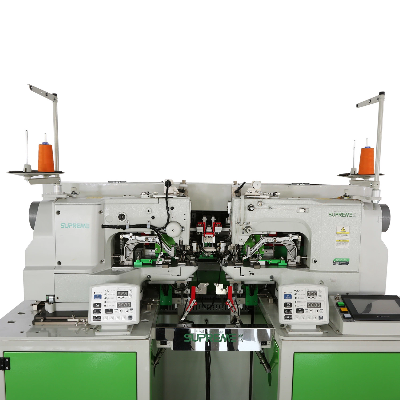

Fully Automatic Drawstring Bar-tacking Machine (fold internally both ends)(SP-F156)Product Details:Efficiency: Rope width: 10-15mm Rope length: 300-2000mm Automatic feeding, cutting, rope end, bar tacking, and collection can be completed at one time, 7 seconds per rope end. It is suitable for sewing hoodie, sports and leisure clothing, waist rope and hat rope. Features: 1. Positioning is accurate, the length of each rope is the same, 2. the position of the tacking is the same, 3. the tacking at both ends of the rope is completed at one time. The air grabbing device is adopted, 4. the rope ends at both ends are internally plugged at the same time, 5. the size of the internal plug rope heads is the same. The length of the rope, the size of the inner plug, and the bar tacking machine can be adjusted according to customer requirements. Application Case: It is suitable for sewing hoodie, sports and leisure clothing, waist rope and hat rope.Specification:Highest sewing speed 3000rpmAir pressure0.5Mpa,1.8L/minDraw cord width10-15mm Weight 250KgDraw cord length300-2000mm Dimensions 1300×835×1350mm Needle model Dp×17VoltageSingle phase220V More Main Products:About us:About us Modern fashion industry has entered a customized and intensive development and the manufacture of the future fashion industry will be a technology-intensive and highly intelligent model ,the trend posing series of challenges against traditional manufacturing model. Supreme, ' customer-focused ' ,focusing on customer needs , provides overall exclusive solutions for individual needs by supporting technological innovation. Special industrial sewing machine ,automatic sewing units and customized products: with strong R&D advantages ,through mechanic design ,motion control ,sound, light,visual control ,WIFI ,RFID and other technologies,it achieved breakthroughs in the technological innovation of sewing machinery,using forward-looking vision and leading mind,which in return provides customers with high-quality and efficient products. Intelligent factory field : build an elite team of 100 people for the whole process of the smart factory, bringing together a group of professionals with deep industry background and rich practical experience. Based on self-developed CPS/PLM/QMS/WMS/APS/MES,core information system that perfectly integrated the IOT intelligent sewing equipment that in tegrate intelligent control technology.intelligent perception technology ,imagine recognition and sewing material motion control technology , so that materials and products have dynamic storage, perception, and communication capabilities. Through the real-time transmission and sharing of data, visualized process control and omni-directional system supervision are realized, so as to achieve intelligent selfmanagement and self- organization of equipment, and selfmonitoring and self-decision-making of flexible production. Equipped with an advanced intelligent logistics and warehousing system, it builds a highly energy-efficient, green and environmentally friendly humanized chemical factory, and continues to create maximum value for customers.Packaging & shipping:FAQ:
