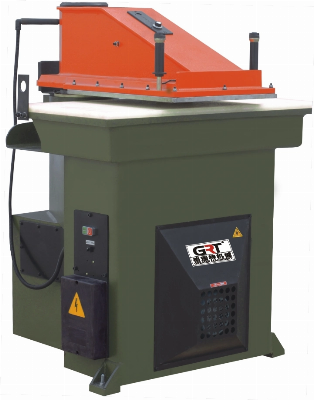

27t Hydraulic Swing Arm Cutting Machine (Cutting Press)

Product Description USE AND CHARACTERISTICS1. The machine is applicable to cutting of various nonmetal materials by cutting die. 2. The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of cutting die is changed. 3. High speed and low energy consumption. 4. To meet the need of frequent replacement of cutting die of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.   Machine configuration Machine configuration:Pump and Valve:made in Taiwan Sealing ring:made in Italy Press switch:made in Italy Cutting switch:made in Germany THE MACHINE INCLUDE PALLET,HYDRULIC OIL,CUTTING BOARD,TOOLS AND SPARE PARTS.Product Parameters   Model GRT-S27KMax cutting force 27T Working area 1000x500mm Swing arm width    500mm Cutting stroke 90mm Motor power 1.5KW Electric Supply Voltage 3x440/415/400/380/220/200V, 50/60 Hz Single phase 240V/220V, 50/60 Hz Machines dimensions 1000x1020x1410mm Packing size 1100x1100x1600mm N. W(with oil) 990kg G. W 1000kg Detailed Photos Packaging & Shipping Contact us /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
