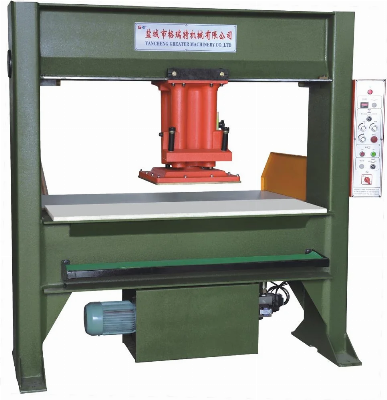

50t Hydraulic Traveling Head Cutting Machine/Moving Head Cutting Press

Product Description Features:1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation. 2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation. 3. The hydraulic system specially designed is featured by low noise and low oil consumption. 4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency. 5. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact. 6. Differential oil way is adopted to allow rapid and convenient cutting. 7. Products of special specifications can be customized. Product Parameters Main  Technical  specification Model  GRT-T50 Maximum  cutting  force  50T Working  table1600*550/1800*550/2000*550mm Cutting   head  size 550*550mm Adjustable  stroke   5-150mm Motor  power  4.0KW Electric  Supply  Voltage 3x440/415/400/380/220/200V,   50/60  Hz  Machine  dimensions 2200*720*2000mm G. W 3000kg Detailed Photos /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
