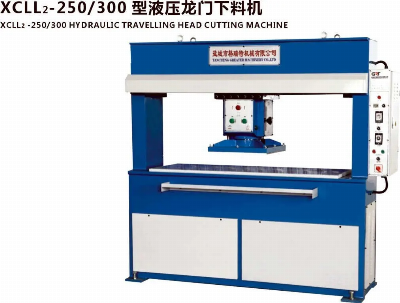

30T Hydraulic Travelling Head Cutting Machine/Cutting Press/Punching Machine

       XCLL2-300 Hydraulic Travelling Head Cutting MachineIt is used to cut one layer or multi-layer of leather, rubber, plastic, hard papers, fiber, and chemical fiber;1. Gantry frame structure is adopted, with high intensity and without deformation.2. The punch head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.3. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.4. The movement of punch head is controlled by automatic speed variation to realize flexible movement with accurate positioning and without impact.5. Differential oil way is adopted to allow rapid and convenient cutting.  ModelXCLL2-300Maximum  cutting  force30TonsAdjustment  range  of  travel5-150mmSize  of  worktable1600 × 510mmSize  of  pressing  board500 × 500mmElectric  Supply  Voltage3x440/415/400/380/220/200V,   50/60  HzMain  motor  power3KWPacking  size2250 × 720 × 2250mmMachine  weight1700KgContact:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
