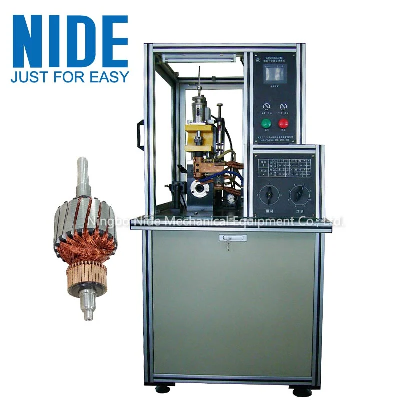

Armature Commutator Spot Welding Fusing Hotstacking Machine

Armature Commutator Spot Welding Fusing Hotstacking MachineDescription: This type of Commutator hot staking machine is used for commutator hook welding. It is automatically indexing, automatically welding,you only need to load and unload the armature. Welding current can be adjusted according to different wire diameter. Easy operation and adjustment. If your armature is beyond the range of our standard machine capacitiy, we could modify our machine according to your armature dimension. Technical parameter: Armature diameter15~100mmCommutator diameter5~60mmWire diameter0.07~1.8mmMax power25KVAPower supply voltage220V±10%50HzAir source pressure0.5~0.7MP  Competitive advantages Variety of application, easy operation. We have Overseas Service Center. It is suitable for rotor or stator with different model number and dimension. The operation and tooling change process is easy. We could customize machine for our customer as per their requirement. We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc. This machine is controlled by PLC. All the parameter could be set on the touch screen,With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available3. Engineers available to service overseasEstablished in 2010, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.NIDE has three main business divisions.The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
