Conical Screw Blender Vertical Powder Blender Nauta Mixer Conical Double Screws Mixer

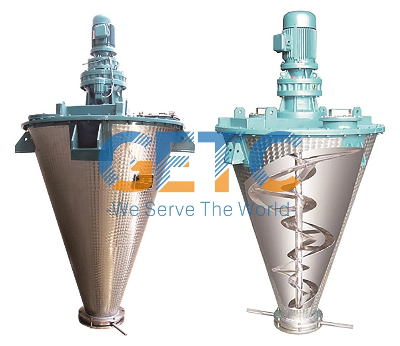

Nauta MixeProduct DescriptionNauta Mixer is asymmetrically cantilevered with two combined helixes, one is longer than the other, they make rotation circle their axes and at the same time make revolution circle the cone's center axis, by which the material will be elevated repeatedly and form shearing, convection and diffusing in the cone cylinder to realize perfect mixing effect. Double screw conical mixer rotated around its axes by right of two internal asymmetric spirals which is installed on the cantilever. Mean while, the rotational force from the cantilever drive two spiral doing revolution around conical chamber axle wire.• Two inner asymmetric spiral upgrade materials by rotation.• Tumbler low-speed rotation makes material circle motion.• Spiral rotation and revolution make materials absorbed while diffuse to circle direction.• Two flow materials upward then down to center, which come into being a downward material flow. This way can full the bottom gap and form a convective circulation.  Features• Rich Experience & Excellent Design AptitudeProducts are designed according to the characteristic of raw and finished materials and manufacturing process(i.e. Pressure requirement, proportion of solid and liquid) to meet the requirements in driving device, operability, sealing, etc. areas.• Reliable Driving DeviceDifferent driving devices in various capacity, power and output speed are for option according to the materials, starting methods and mixing method.Driving motor uses SIEMENS, ABB, SEW , etc. international brands products, output torque can be output by direct-combination, chain-wheel combination, hydraulic couplers , etc..Reducers uses cycloidal pin gear reducer or worm gear reducer. The combination of hard-teeth reducer and cycloidal pin gear reducer is good for spray-type Nauta Mixer. (spray nozzle in the middle is better. )• Nice Auxiliary ComponentsAuxiliary components are for option, such as: coil pipe steam heating jacket, honeycomb anti-pressure jacket, recycle-medium jacket, sampling valve, temperature detector, weighing system, dust collecting system, etc.Various type can be customized, such as spraying type, ex. proof type, heating type, vacuum type, etc.Equipment material can adopt carbon steel, SS304, SS316L, SS321, and also polyurethane lining or coated with high wear-resistant material.Valves: plum blossom valve, butterfly valve, flap valve and ball valve are for option. ApplicationsThis machine is widely used for mixing of powdery or paste materials in pharmaceutical, chemical and feed trades etc.Product ParametersModelLDSH-1.5LDSH-2LDSH-3LDSH-4LDSH-5LDSH-6Total Vol. (L)150020003000400050006000Working Vol. (L)90012001800240030003600Motor Power (kw)45.57.5111230Related Products                       Trough Type Mixer                                                           Agravic Mixer                                              Horizontal Ribbon Mixer       Company ProfileChangzhou General Equipment Technology Co., Ltd. is located in LiYang city, a famous scenic and tourist city in JiangSu Province. It is a high-tech equipment manufacturing enterprise . The company is located in the local High-tech Machinery Industrial Park, with very convenient transportation.The company covers an area of 70,000 square meters, plant area of 50,000 square meters, nearly 100 employees. The company has high-end processing equipment & testing equipment; It has D1 and D2 pressure vessel design qualifications and A2 pressure vessel manufacturing qualifications.Our main products are including Jet Mill Micronizer, Mixer, Granulator and Dryer, Chemical Equipment: Reactor, Heat Exchanger, Column, Tank and Environmental Protection Equipment, etc .We provide technology research and development, process design, equipment manufacturing, installation and commissioning, project contracting and other comprehensive services. Our products are quite widely applied in the industry of petrochemical industry, Pharmaceutical , Agricultural Chemistry, New Energy, thermal power, steel smelting, Environmental Protection and other Service.Our customers are from the domestic and overseas markets, product quality and fantastic service are deeply praised by customers and partners.We adhere to the concept of "Scientific Management, Advanced Technology, Quality Priority & Win-Win Cooperation", pursue the enterprise purpose of "Market by Quality, Win customers by Reputation, and seek development by Science & Technology", carry forward the enterprise culture, deepen the enterprise management, enhance the enterprise image, actively create new high-quality products, to provide customers with the superior quality.Sincerely welcome all customers to visit our company for guidance and cooperation, let's make a better future together.Certifications   Packaging & Shipping           /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
