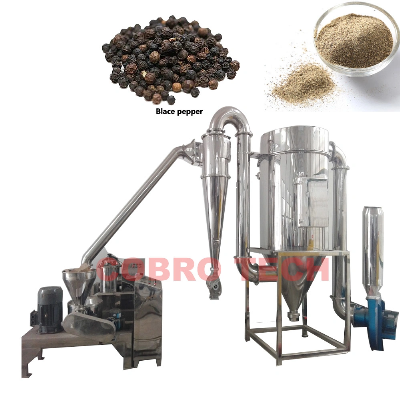

Coarse Crusher Chili Turmeric Ginger Cinnamon Nutmeg Grinder

Product DescriptionCoarse Crusher Chili Turmeric Ginger Cinnamon Nutmeg GrinderThe food grade cinnamon grinder consists of hopper,fixed discs,rotating discs,motor,dust collector (optional),control box and other related parts.It makes use of the high speed relative movement of the movable fixed disc and the rotating disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.the crushed material can be discharged directly from the grinding chamber of the machine and the desired granule size can be obtained by installing screens with different apertures.Besides,the whole machine is made of stainless steel.The inner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the national standard and the GMP requirement.Product Parameters ModelPL-UC20PL-UC30PL-UC40PL-UC60PL-UC80Capacity(kg/h)30-15030-33050-45080-560120-750Speed of principle axis (rpm)45003800340030002100Size of input  granule (mm)1015182025Finished products fineness (mesh)10-12010-12010-12010-12010-120Power (kw)47.5112230Weight(kg)2303504507001200                                                                                                        FeatureThe turmeric grinder feature1) Simple structure,easy in installation and maintation. 2) Adopting advanced world famous brand components in bearing,electric parts and operation parts. 3) Running in a high automatization and intellectualization,whole sealed design,no pollution  4) Apply a linker to connect with the air conveyor,screw conveyor ,which can directly inline with mixing machine,filling machine,packing machine . Detailed Photos                             Rotated Pin                                                                          Screen                                                                      Wator cooling inlet    Product Application  Best seller equipments                        Vacuum conveyor                                                                 Vibrating sifter                                                                 Bag filler   Packaging & Shipping /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
