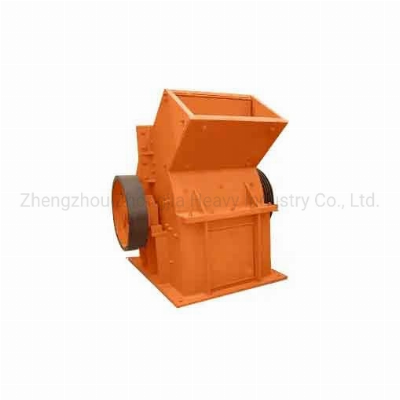

Stone Crusher Machine Diesel Engine Hammer Mill

Hammer crusher mainly depends on the impact of the hammer head to break the materials. At the same time, the materials are fed into the machine from the upper feeding port and crushed by the impact, impact, shear and grinding of the high-speed hammer.Hammer crusher is applicable to crushing materials with medium hardness, with feed particle size ≤ 1200mm and compressive strength lower than 200MPa, such as limestone, dolomite, slag, coke, coal and other materials.ModelRotor speedFeed size(mm)Discharge size(mm)Capacity(t/h)Power(kw)Weight(t)DimensionL*W*H(mm)PC400*3001200≤80≤105-8110.7812*982*785PC600*4001000≤100≤1510-1518.51.51200*1114*1114PC800*600980≤120≤1520-25553.72620*1864*1340PC1000*10001000≤200≤1540-601328.53574*2250*1515PC1200*1000745≤200≤2575-15016012.72550*2400*2630PC1200*1200745≤200≤2080-160185142550*2600*2630   1. The working hammer head is cast with a new process, which is wear-resistant and impact-resistant.2. The required granularity can be adjusted according to customer requirements.3. Hammer breaks the structure seal of the machine body, which solves the problems of dust pollution and ash leakage in the crushing workshop.4. The overall design is beautiful in appearance, compact in structure, few wearing parts, easy to maintain, etc. It is an upgraded product.  Production line configurationGenerally speaking, the jaw crusher, as a coarse crusher and medium crusher, is used for breaking the head of the stone crushing production line, followed by impact breaking or cone breaking, and then adding sand making machine equipment.Hammer crusher is a new model, which eliminates the initial breaking process, realizes the short process of stone production process, and does not need to be equipped with second breaking and third breaking equipment./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
