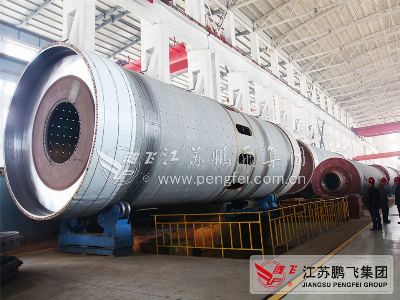

3.2X13m Slag Mill

3.2x13m Slag mill Description of Slag Ball Mill: This slag ball mill is a key machine mainly used to process materials from crushing process, and it is widely used in various manufacture industries, like cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics. Besides, it can also used in dry and wet grinding for all kinds of ores and other grindable materials.Technical specification ( Edge driving ) I. Technical parameter & technical performance 1.    Specification: Φ3.2×13m 2.    Production capacity: 20-25t/h ( Open circuit, Slag feeding size:≤25mm, Feeding moisture: ≤0.5%, Feeding temperature:≤50ºC, Wind speed in mill,1.1-1.2m/s, Specific surface area:≥420m2/kg 3.    Rotary speed of mill: 18.7 r/min 4.    Charging capacity of grinding medium: 126t 5.    Main motor: (Jiangsu Motor Plant) Model: YR1600-8/1430, Power: 1600kw, Rotary speed: 743 r/min, Voltage: 10 kv 6.    Main reducer: Model: MBY900, Hardened gear surface ( Nanjing High-speed Gear box plant ) 7.    Auxiliary motor Model: YEJ225M-8,  Power: 22kw,  Rotary speed: 740r/min 8.    Auxiliary reducer Model: ZSY315-II,Speed ratio: i=100,Input rotary speed:740r/min 9.    Cooling method: Water cooling 10.  Lubricating method: Thin oil station ( GYXZ-40A ) (1)   Low pressure system  Flow: 40L/min, Oil supply pressure: 0.4Mpa, Pump model: CB-B63 Oil supply temperature: 40±3ºC, Motor: Y112M-6 B35 2.2kw (2)   High pressure system  Pump model: 2.5MCY14-18,   Flow: 2.5L/min,  Oil supply pressure: 32Mpa    Motor: Y112M-6  2.2kw (3)   other performances volume of oil box: 1m3 Filtering precision: 0.08mm Filtering area: 0.19m2          Cooling area: 5m2          Cooling water consumption: 3.6m2/h          Heater power: 3kw×3          Working medium: N22-n320 11.  Weight of equipment: 223t II. Main parts & components, and their materials 1. Main motor: YR1600-8/1430   1600kw   10kv 2. Main reducer: MBY900 3. Auxiliary motor: YEJ225M-8    22kw 4. Auxiliary reducer: ZSY315-II i=100 5. Shell: Q235-B   Plate thickness: 32 6. Hollow Shaft: ZG230-570( ZG45 ) 7. Bull gear: ZG310-570 ( zg45) 8. Pinion: 40Cr ( Quenching and tempering ) 9. Main bushing: The lower seat: HT250               Bushing body: HT250               Bushing liner: ( Babbitt alloy ZchSnSb11-6 ) 10. Lining board: Medium chrome alloy 11. Single partition: Medium chrome alloy III. Supply scope       1. Rotary part                1set       2. Feeding device             1set       3. Main bearing device         2set       4. Discharging device          1set       5. Lining board and partition plant    1set       6. Driving device ( Bull gear, pinion and housing)    1Unit/set       7. Main motor                     1Unit       8. Main reducer                    1Unit       9. Auxiliary motor                  1Unit       10. Auxiliary reducer                1Unit       11. Thin oil station                  2Pcs       12. Shaft coupling                  1Unit/set       13. Base of motor and reducer         1Unit/set       14. Control part                     1Unit Technical Parameters of Slag Ball Mill:NumberSpecification (m)Productivity (t/h)Rotating speed of cylinder(r/min)Rotating modePower (kw)Speed reducerWeight (t)ModelSpeed ratio1φ2.2×6.51821.4Edge310ZD705442φ2.4×826-2820.14Edge570ZD806.3903φ2.6×1311-1519.7Edge1000JDX8006.31374φ2.8×6.53518.65Edge630ZD806.31005φ2.8×1045-4818.65Center800MFY8037.51606φ3×6.53718.58Edge800JD8005.61157φ3×940-5018.58Edge1000JD800B5.61328φ3×1265-7518Center1400JS110-B-F142.222029φ3.2×1372-7517.86Edge1400JDX9006.323710φ3.4×7.57016.9Edge1000ZDA-1006.316711φ3.5×109016.8Center1250Js110-A44.115412φ4.6×7.5+3.518015Center2500-----27213φ4.6×10.5+3.5210---Center3550JQS355015.1360     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
