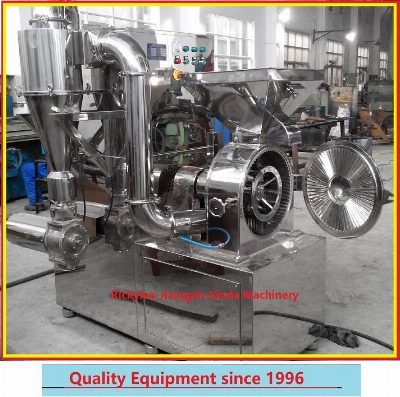

Food Spice Plant Herbal Powder Crusher Pulverizer Grinding Machine

Food Spice Plant Herbal Powder Crusher Pulverizer Grinding MachineHerbal Grinder 80-300mesh Ground Size:1. Main Application (1) The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. (2) It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese Herbal Medicines with fibers and those with oils. 2. Working Method (1) The machine is composed of feeder, grading wheel, pulverizing blades, gears, pulverizing motor, discharging gate, fans, collection box, dust collection box and etc. (2) Any raw material, being feed into the grind chamber through the upper feeder, is pulverized by highspeed running blades. (3) The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. (4) The highspeed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber. (5)The dust from grinding chamber is filtered recycled via the cloth bag or filter of the dust absorption box. (6) The whole machine, designed according to GMP standard, is made of stainless steel for easy cleaning. (7) With the features of easy structure, convenient operation, low noise and high capacity, avoiding dust flying in production.   Model200300400Capacity10-15020-30050-500Size of input granules(mm)≤ 10≤ 12≤ 15Fineness of products(Mesh)20-25020-25020-250Grinding power5.57.511Dust absorption power1.52.23Weight320550750Overall size(L× W× H)1350× 920× 18001400× 1050× 20501600× 1150× 2100  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
