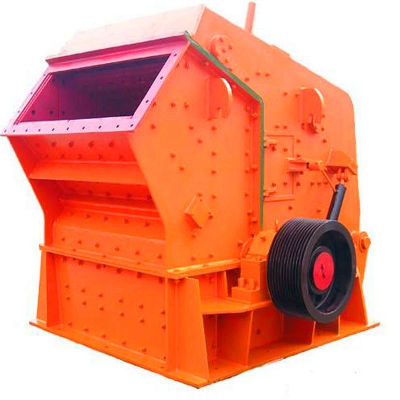

Mining Stone Impact Crusher with Large Capacity

Mining stone impact crusher with large capacity  Introduction: PF series impact crusher is the new developed impact crusher in our company. We work together with advanced domestic/ foreign R&D department after researching the gravel industry and mining conditions in China. It adopts the latest manufacturing techniques and unique structural design. The finished products are cubes, which are nice granular shape and without tension crack. This kind of crusher can be used as the class II crushing plant or fine crushing plant for gravel production line.  PF impact crusher is mainly made of chassis, rotor, impact rack and motor, etc. The rotor has a greater rotational inertia with low power consumption. It uses high chrome blow bar (Mn13, Cr2) which is shock resistance and wear resistance. By this way it extends the using life of wearing parts effectively. Application: 1.widely applied in mining, road&railway, concrete, chemical and building material industries.2.Ores and rocks with various hardness.3.Concrete basis and steel structure basis.4.Stationary, half-mobile and mobile applications.Working principle of impact crusher:Impact crusher is that when the ore is put into the feeding opening and sliding downward along the plate, the ore will be smashed by the high-speed rotary hammer on the rotor when the screen ore is in the falling process. And with high speed along the tangent direction back toward to the first plate, continue to break the ore, the back plate will hit the ore back, then collisions with other ores. Therefore the ore is crushed by the repeated impact in the first cavity, part of the ore in the first chamber will be broken to a certain particle size, then, through from the gap between the bake plate and the rotor, will be put into the second broken cavity, continue to be crushed, untill they become the small size, then will come out through the bottom of the crusher. We can see from the above, impact crusher uses the impact principle to break the ores.  Features of impact crusher:1. Cubic-shaped end products;2. Adjustable end products sizes, simple crushing process;3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impacting force;4. Non-key connected, easy to maintain, cost-saving;5. Sound construction and high efficiency.Technical parameter Table:impact crusher ModelFeed Opening(mm)Max. Feed Size(mm)Capacity(t/h)Motor Power(kw)Weight(t)Dimensions(mm)PF-1007820×70030024-45559.52400×1558×2660PF-10101170×72035050-8075102532×1985×2196PF-12101090×46535080-130110142638×2037×2713PF-12141440×465350100-160132182580×2400×2810PF-13151532×560350140-20020019.32840×2748×2556PF-13161690×859350150-22020019.53096×2850×2667PF-15161840×859350300-35025024.53700×3500×7280PF-18141930×580350350-400132×2322816×2902×3062PF-20162100×895350150-220200×2403452×3021×3937If you are new for this business, we will help you In order to find the suitable models and design the best stone crusher plant or sand making line for you,pls kindly inform us the following information:1. Which kind of material you are going to crush? Soft stone (dolomite, limestone) or hard stone ( granite, basalt, river pebble )?2. What's the max input size of the material? (In inch,centimeter or milimeter)3. What's the granularity of the final products you need? (in milimeter, micron or mesh)4. What's the production capacity you want? How many tons or cubic meters per hour?5. You want only a Crusher, or a complete Crushing Production Line?    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
