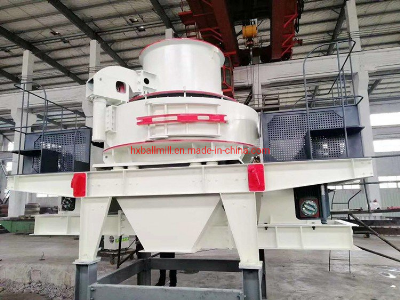

VSI Sand Making Machine Vertical Shaft Impact Crusher Competitive Price

VSI Sand Making Machine Vertical Shaft Impact Crusher Competitive Price Vertical shaft impact crusher  Usage and application:VSI, the high efficient Vertical Shaft Impact Crusher is a kind of sand making machine, sand maker.it is preferred choice for artificial sand making or stone reshaping in producing building aggregate, concrete,mining, refractory materials, cement, raw materials quartz sand and other high purity materials.Vertical shaft impact crusher  Working principle: Hard stone materials fall into the crusher and are divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller.The two parts materials bump and crush fast during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.VSI sand maker adopts central feeding and central cascade feeding way, which can be changed based on customers' needs.Vertical shaft impact crusher Features:1. The structure is simple, and the operating cost is low.2. High efficiency, and low consumption.3. Sand Making Machine is slightly influenced by the humidity of material, and the max humidity is 8%.4. VSI Sand Making Machine is more suitable for crushing mid-hardness materials and high-hardness materials.5. Its product is cubic, and the density of piling up is high and the iron pollution is low.6. The working noise is less than 75 decibels and dust pollution is littleVertical shaft impact crusher technical specifications :ModelVSI7611VSI8518VSI9526VSI1140VSI1145Capacity (T/H)Center And Ring Feeding120-180200-260300-380450-520500-640Center Feeding60-90100-130150-190225-260250-360Best Feed Size (MM)Soft Material3540455050Hard Material3035404545Rotation Speed (R/MIN)1700-18901520-16901360-15101180-13101200-1390Power For Double Motor (KW)110180264400440Dimension L×W×H (MM)3700×2150 ×21004140×2280 ×24254560×2447 ×27785000×2700 ×33005100×2790 ×3320Weight (t)11.814.517.825.626Power Soppty380V 50HzVibrating SensorMonitering Range:0.1-20MM/S Continuousely AdjustableLubrication Hydraulic StationDual Oil Bump Motor Power2×0.25kWSecurity ProtectionDouble Oil Pump Ensure The Normal Oil Supply;Automatic Shut Down If No Oil Pressure;Water Cooling;Motor Preheating In Winter.Over Dimension L×W×H(mm)820×520×1270Oil Tank Heating Power2KWVertical shaft impact crusher customer site :For Any Inquiry , Please contact us directly with Following information :1. What kind of stone be crushed ? Limestone ? Granite ? Basalt ? or which kind ? 2. The general sizes of stones before crsuhing 3. The Sizes of Required final products ? For Mining ? For Construction ? 4. Capacity ? ___ T/H or ____ CBM/H/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
