Wholesale Citronella Oil Distillation Plant Lavender Essential Oil Extraction Machine

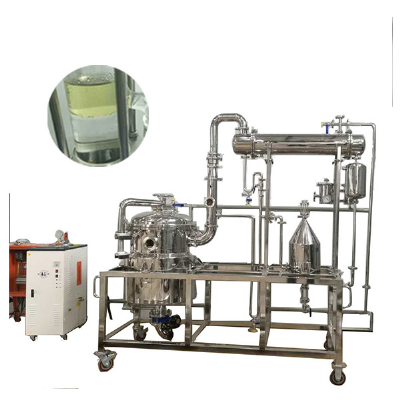

Wholesale Citronella Oil Distillation Plant Lavender Essential Oil Extraction MachineProduct Structure:The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.Essential oil distillation extracting equipment Main parameters  No.Equipment Name      Model                                  Main parameters 1Essential oildistillation      equipmentLSZL -        100-D1, Structure: The device consists of distillation kettle, material basket,  jacket heating layer, insulation layer, demister, condensing tower,  re-distillation column, rectifier, oil-water separator, Electric steam  boiler, filter and other related pipelines composition.2, Distillation kettle: Max volume 150L, effective volume 100L, material basket volume 80L, use jacket heating and steam direct heating, heat exchange area more 1m2   Kettle inside: design pressure: 0.09Mpa, working pressure: normal pressure; design temperature:120ºC,work temperature≤100ºC.  Working medium:water;   Jacket layer inside: Material Aluminium silicate, thickness 50mm   Slag discharge door:Manual slag door, DN100;     Insulation layer: Material Aluminium silicate, thickness 50mm3, Demister: Size Φ102×500, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements.4, Condensing tower: Vertical condenser. Heat transfer area is greater than 2m2.  Pipeline: designed pressure: normal pressure;working pressure: normal   Pressure; design temperature: 100ºC, work temperature≤100ºC.  Working medium:Secondary steam. Length: Φ25×2;  Shell: designed pressure: 0.3Mpa,working pressure: normal pressure;  design temperature: 80ºC,work temperature: 15~30ºC.  Working medium: cooling water.5,Pure dew storage tank: 304 stainless steel production, volume 25L.6, Oil-water separator: the special oil-water separator, stainless steel  tank, glass as the cup, tank volume is 30L.7, Filter: 120 mesh filter, flow 2.0m3 / h, material for the S30408.8, Electric steam boiler: 380v, 50Hz, adjustable 6-18kw, steam  temperature: 120ºC/100ºC, steam production: 26kg/h,  working pressure: 0.4 ~ 0.6MPa, cable cross-sectional area: 10m2,  water pressure: 0.4MPa.9, Accessories: S30408 stainless steel bracket, a thermometer, a pressure gauge, a mirror.       Main advantage essential oil extraction equipment:(1)By steam-distillation to reach the extraction of essential oils.(2)Easy operation. One people can operate this machine easily .(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100ºC high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.(4)Compact structure.It covers only about 1.5 square meter.Product Application of essential oil extraction equipment:Our essential oil extraction equipment,health products,biological drugs,cosmetics and food .This uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants. DescriptionRaw materialDescriptionRaw materialGaultheria procumbensessential oil distillerGaultheria procumbens leaf Cinnamomum cassiaessential oil distillerCinnamomum cassia Cinnamon barkAchillea millefoliumessential oil distillerAchillea millefolium Flowers and upper branches Santalum albumessential oil distillerSantalum album Wood core and root coreCymbopogon nardusessential oil distillerCymbopogon nardus Leaf bladeMatricaria chamomillaessential oil distillerMatricaria chamomilla flowersPimenta dioicaessential oil distillerPimenta dioica seedsAnthemis nobilisessential oil distillerAnthemis nobilis flowersAngelica archengelicaessential oil distillerAngelica archengelica rootCinnamomum zeylanicumessential oil distillerCinnamomum zeylanicum Wood core and root coreAngelica archengelicaessential oil distillerAngelica archengelica seedsSalvia sclareaessential oil distillerSalvia sclarea Leaf  and upper branchPimpinella anisumessential oil distillerPimpinella anisum seedsEugenia caryophylattaessential oil distillerEugenia caryophylatta budArnica montanaessential oil distillerArnica montana rootEugenia caryophylattaessential oil distillerEugenia caryophylatta LeafArnica montanaessential oil distillerArnica montana flowersCoriandrum officinalisessential oil distillerCoriandrum officinalis seedsOcimum basilicumessential oil distillerOcimum basilicum Leaf  and upper branchAnethum graveolensessential oil distillerAnethum graveolens seedsLaurel nobilusessential oil distillerLaurel nobilus LeavesAnethum graveolensessential oil distillerAnethum grav
