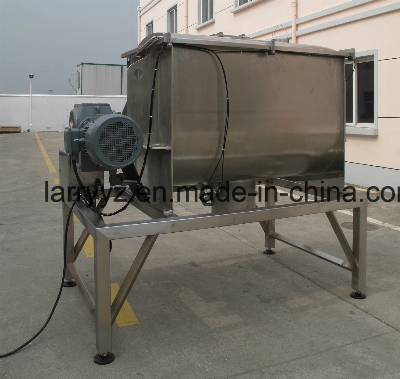

Sld1000 Double Ribbon Blender & Ribbon Blending Machine

SLD1000 Double Ribbon Blender & Ribbon Blending MachineMain Introduction: The Horizontal Screw Belt Blender is a new type, high efficiency mixing equipment, are widely used in food and chemical industry. Main features: 1. Horizontal tube body, inner & outer dual screw with special structure, running stable, best quality, low noise, long life, convenient installation, widely usage, with many kind of Blender structure, multiple function 2. Whole machine except for motor is made of stainless steel 3. With warm sheet, bearing great pressure, make easy-forming material into difficult forming after filling steam 4. For different mixing requirements, use different screw structure, rapid & thorough mixing 5. There is a split window in the body for cleaning 6. Load coefficient large, covering small surface 7. With safety screen inside cover 8. Pneumatic discharge door. Technical parameters: ModelSLD200SLD300SLD500SLD1000SLD1500SLD2000Effective Volumeliters213L303L519L965L1376L1856LCubic foot7.510.718.33448.665.6Total volume in cubic foot101525456687.5All Volume in liters284L404L692L1286L1835L2475LRotate speed (RPM)464646464646Blend time0-30 min0-30 min0-30 min0-30 min0-30 min0-30 minAir pressure0.4-0.6 MpaOverall Dimension(m)1.37*0.83*1.651.55*0.97*1.661.77*1.1*1.862.39*1.32*2.182.72*1.4*2.313.08*1.63*2.45N/w260kg350kg500kg700kg1000kg1300kgTotal Power (1HP=0.735KW)4KW5.5 KW7.5 KW11 KW15 KW22KWPower in unit HP5.5HP7.5HP10HP15HP20.5HP30HPVoltage Supply3 Phase 208-415V   50/60Hz/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
