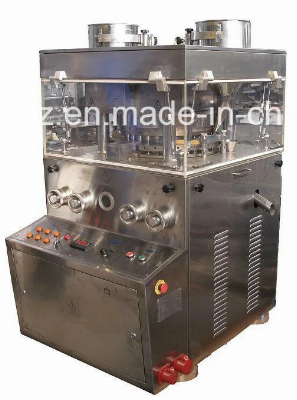

Zpw31 Rotary Tablet Press Machine & Pharmaceutical Machinery

ZPW31 Rotary Tablet Press Machine & pharmaceutical machineryDescription:This machine is a double-press type. Continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries. 1. Produce all kinds of round tablets, irregular tablets, double-layered and annular tablets. 2. The outside part of the machine is fully-enclosed, The material of the cover and the inside table face is stainless steel. The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the GMP requirement. 3. It has transparent windows so that press condition can be observed clearly and the window can be opened Cleaning and maintenance is easier. 4. The lay-out of all the controllers and the operate parts is reasonable. 5. The speed adjustment of the driver is controlled by the frequency conversion device. 6. All the drive devices are located inside the machine so keep the machine clean. 7. A overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs, the machine stops automatically. 8. The punches and dies are also applicable to Model ZP19 ZP33 Technical parameters:Item Type ZPW29 ZPW31 Dies 29 31 Max Pressure 80KN 80KN Max Dia of the tablet 25mm 22mm Max depth of filling 18mm 18mm Updated filling depth, With extra charge 20-24mm 20-24mm Max thickness of the tablet 6mm 6mm Roll speed 14 - 36 roll / min Product capacity 125000PCS/hour 135000PCS/hour Motor 4kw 1440r/min 380/50 V/Hz Overall Size 1230*950*1700 mm Net weight 1700kg /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
