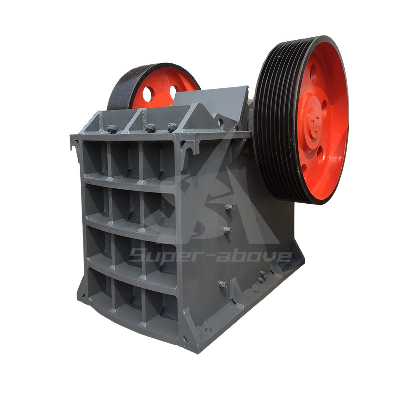

Mining Machinery PE Series Jaw Crusher for Coarse Crushing

Jaw Crusher Brief IntroductionOur stone crusher machine, a type of jaw crusher is widely used in mining, railway construction, water conservancy project, metallurgy, chemical, building material industries. It is mainly used to crush rock and ore, whose compression strength is less than 320 Mpa. Jaw crusher, your preferred primary crusher, is used for coarse crushing and fine crushing.Jaw Crusher Features1. Crushes the ores,rocks ,pressure below 320 MP; 2. Easy maintenance;3. Used in mining,building,chemical;4. Crusher with Less machine stop time; 5. Low cost;6. Long service life; 7. Primary crusher, simple structure;8. Strong construction;9. High crushing ratio;10. Easy maintenance;11. Stable performance;12. Jaw crusher with Even final productsJaw Crusher SpecificationsModelFeeder Opening (mm)Setting AdjustmentRange(mm)Max. FeedingSize (mm)Capacity (t/h)Motor Power (KW)Weight (t)PE250x400400x25020-502005-25152.4PE500x750500x75050-10042540-11045-5512PE600x900900x60065-16048090-18055-7517PE750x10601060x75080-140630110-32090-11029PE900x1200900x120095-165750220-450110-13252PE1000x12001000x1200195-265850315-55011057PE1200x15001200x1500150-300950400-85022082.5PEX250x750750x25025-6021015-3022-305PEX300x1300300x130025-6025020-1207511Jaw Crusher Working PrincipleWhen Jaw crusher working, motor through the pulley drive the eccentric shaft rotation, from the period of hubei near, fixed jaw, and for the material such as extrusion, rolling and run multiple broken, make material from large to small, gradually whereabouts until discharge through the discharge port.  Jaw crusher applicationsPE series jaw crusher  is typically used as primary crusher or the first step in the process of reducing rock. They typically crush using compression. It is widely used in Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.. It can process Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc...  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
