Crobotp Continuous Path Control Export Package 1454mm China Industrial Robot

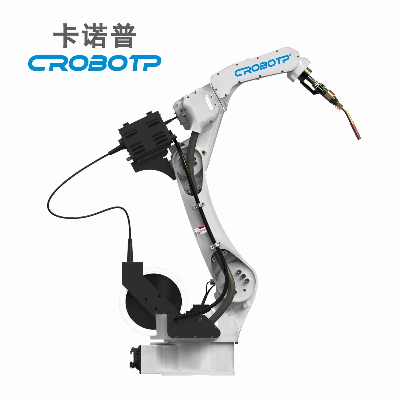

  CRP-RH14-10-W  Functional FeaturesCRP-RH14-10-W welding robot has below functional features:1)-The arm span is 1.4 meters. The design is highly compact and can be flexibly installed on the ground or upside down.  2)-With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications.  3)-The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to providedouble-circuit emergency stop to ensure the reliability of emergency stop.  4)-The robot body adopts highly flexible special cable.  5)-Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI.6)-The robot body is with dual-circuit gas pipe to meet the welding demand.  7)-The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch.8)-Highly flexible welding cable is built-in. Product Specification ModelCRP-RH14-10-WArm form6 axis vertical multiple jointsMaximum payload10KGRepeated positioning accuracy±0.08mmMaximum reaching distance1454mmRobot body weight170KGInstallation modeGround, upside down mounting, wall mountingMaximum travelaxis 1Ground/upside down mountinq-167°~167°, wall mounting -300~30°axis 2-155°~90°axis 3-175°~240°axis 4-190°~190°axis 5-105°~130°axis 6-210°~210°Maximum speedaxis 1169°/Saxis 2169°/Saxis 3169°/Saxis 4301°/Saxis 5220°/Saxis 6743°/SAllowable torqueaxis 420N.maxis 520N.maxis 611N.mAllowable moment of inertiaaxis 40.5kg.m2axis 50.5kg.m2axis 60.16kg.m2Installation environmentambient temperature0~45°Crelative humidity20~80%( No condensation)vibrationUnder 0.5 CothersRobot installation must be away from: flammable or corrosive liquids or gases, electrical sources of interferenceIP levelBody 1P54,wrist IP67Advantage featuresCompact structure, high speed, high precision, high expansibility and easy operationApplicationWelding, cutting, assembly, handling, marking, grinding  Application Features  Aluminum welding application has below features:1)-The robot moves smoothly, the end speed is consistent with the set welding speed and the welding is stable with good shape.2)-The robot and welding machine adopt full digital communication control, so that the best welding efficiency and welding effect can be exerted;3)-The welding parameters can be set on the robot, or for the same workpiece with different thicknesses, which require different welding process conditions: such as duty cycle, frequency and other parameters, it can also be achieved by calling different JOB numbers through the robot.4)-Hollow 500A water-cooling welding torch supports long-term double-pulse welding.5)-Single/double pulse digital welding machine6)-The penetration can remain the same and keep stable current output when the stick-out length of wire changes.7)-It has smooth short-circuit transition technology, which can help weld bead more uniform and in good shape.8)-It has short arc pulse technology, which helps the welding speed be more fast.9)-It has high frequency dynamic wave energy control, which achieves high welding penetration, low heat input and well recognizable fish scale pattern.10)-Low heat input and the wire feed has encoder feedback which is more stable and has strong anti-interference.  Application Photos    Company ProfileProduct List  Our FactoryExhibitions/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
