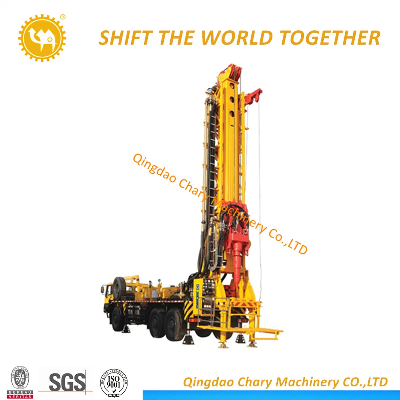

2021 Water Well Drilling Machine/Drilling Rig

Product description 2021  Water Well Drilling Machine/Drilling RigXSC Series Deep Well Drilling Rig Technical CharacteristicRood Condition Adaptive Intellective All-terrain Off road Chassis Multi-axle steering intelligent  control ) and multi-steering mode provide flexible steering and small steering diameter, hydro-pneumatic suspension with a good traveling performance. adapts severe road conditions such as muddy road. sand, snowfield. upland etc.Full Hydraulic Top-driveOutput port adopts floating device, which effectively reduces the wearing of the drill stem thread, and increases service life of the drill stem.Spindle  has a strong slag discharge capacity through its large drift diameter, which makes it especially adapt the reverse circulation constructionThe feeding systemIt has a large stroke by extending completely when working.  Model1200ProjectUnitParameterfeeding system  Maximum lifting force(kN)1200Maximum feeding force(kN)260Drilling depth(m)2500(φ127)Max diameter of work floor(mm)Φ820Onboard engine  Type-CAT C18Rated power(kW)571Top-mounted driving force head  Peak torque(N?m)27500Speed of rotation(r/min)0~180Drift diameter of principal shaft(mm)φ105Floating stroke of the principal shaft(mm)100Stroke(mm)15240Fast lifting speed(m/min)30Fast lowering speed(m/min)60Maximum tilting angle(°)85Winching rotary hook  Maximum hook load(kN)-Maximum lifting or lowering speed(m/min)-Tool winching  Maximum lifting force(kN)50Maximum lifting or lowering speed(m/min)46Back-off device  maximum shackle torque(N?m)85000Retaining scope(mm)0~245Mud pump  Maximum pump discharge(L/min)-Peak pressure(MPa)-Foam pump  maximum pump discharge(L/min)50Peak pressure(Mpa)10Sludge pipe  Drift diameter(mm)φ76Pressure(Mpa)35Chassis  Driving form-10×8 Automobile chassisEngine type-ISM11E4 420Rating of engine(kW)353Maximum running speed(km/h)75Maximum gradability(%)42Working dimension(mm)14680×4970×21400Transportation dimension(mm)14220×2550×4000Overall weight(t)55MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOUWHY CHOOSE US?Experience10 years experience of production,sales,research and development in the field of special trucks.SpecializationWe can produce according to your demand, the material,the size, the color and the logo is optional for you.Good qualityHas solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.Chassis supplyWe have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON,  SHACMAN, SHANTUI, CIMC, DONGFENG and so on.OUR SERVICE(1) More than 300 workers ,large and advanced production; (2) Have professional engineer,can offer the best solutions;(3) With keeping good relation with SINOTRUK, FOTON,  DFAC, FOTON, SHACMAN chassis factory.(4) Build strict QC team to guarantee the quality;(5) Own good sales team, can offer warm follow-up service.(6) Spare Parts Supply:We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.FAQ1, How to purchase the trailer truck from your company?You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract. 2,How to ensure product quality?Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery. 3, How to visit your factory? After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.WELCOME TO CONTACT USIf you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.Qingdao Chary Machinery CO., LTD   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
