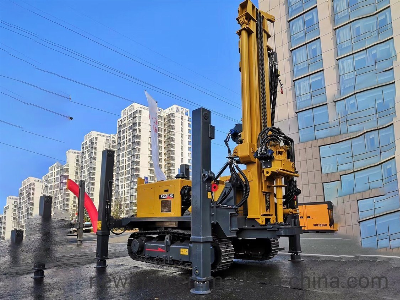

High Precision Water Well Drilling Rig Dh46A-H Water Drill

High Precision Filter Elements Water Well Drilling Rig DH46A-HProducts Description* Special designed floating pipe and hose reel protects the hydraulics and air pipes and hoses, achieving a stable output of hydraulic energy and a longer service life of the oil lines.* Standard two-stage effectively protect the environment and the health of operators.* The unique control system offers auto adjustment of feed rate and pressure, rotation torque and impact pressure so as to reduce the failures such as jamming.* Utilization of high precision filter elements ensures the cleanliness of hydraulics and extends service life time of thehydraulic components.Product ParamentersModelDH45A-HBorehole Diameter90-115 mmPipe Sizes64/76x3000 mmHammer Size3''/4''Max Rotation Speed120 rpmMax Rotation Torque1900 N·mFeeding Stroke3000 mmFeed Extension900 mmFeed Speed0.59 m/sFeed Force15 kNPull Up Force25 kNLength of Feed Beam4500 mmMax Walking Speed2 km/hTrack Oscillation290 °Ground Clearance   Grad Ability30 °Rated Power59 kWEngine   Length5000 mmWidth2300 mmHeight2050 mmWeight4900 kgPictureCompany Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
