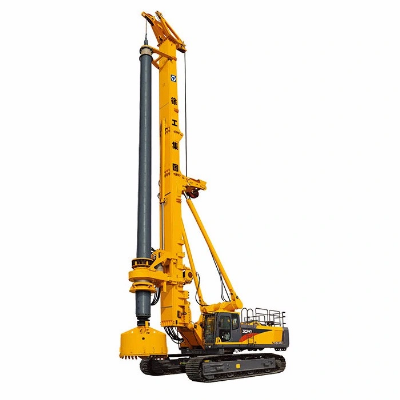

Xr220d Rotary Hydraulic Drilling Rig with Cummins Engine Ce

Product Description Hydraulic Rotary Drilling Rig XR220D   Product Information:Adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearingto provide extraordinary stability and transport convenience.Cummins electric control turbo-supercharged engine to provide strong power and conformitywith Euro III emission standard. With the hydraulic pressure system adopted threshold powercontrol and negative flow control, the system acquired high efficiency and higher energyconservation.Using single rope winding, effectively solve the steel wire rope wear problem, improve the lifeof wire rope; And drill deep detection device is setted in main winding,single rope to make deepinspection more accurate.Several drilling rod configurations with different specification areavailable for efficient construction on different layers.The whole machine design meet the requirements of the CE directive, safety guarantee,construction safer. The optional centralized lubrication system, maintenance more convenient. The detachable unit head drive key can provide easy maintenance and replacement.Technical Data:EngineEngine BrandCUMMINSEngine TypeQSL9Rated PowerkW242Rotary DriveMax output torquekN . m220Rotary speedr/min7~22Max Drilling Diametermm2000Max Drilling Depthm67(special designed 80)Crowd CylinderMax pull-down piston pushkN200Max pull-down piston pullkN200Max pull-down piston strokem5Crowd WinchMax pull-down piston pushkN250Max pull-down piston pullkN250Max pull-down piston strokem15Main WinchMax Pulling forcekN230Max line speedm/min70Auxiliary WinchMax Pulling forcekN80Max line speedm/min60Mast RakeSide0± 40Forwards± 50Backwards± 150UndercarrigeMax traveling speedkm/h1.5Max grade ability%35Min Clearancemm450Track shoe widthmm800Distance between tracksmm3250 ~ 4400Hydraulic SystemWorking pressureMpa35Overall Drilling Weightt78DimensionWorking conditionmm8968 x 4400 x 22688Transportation condition mm16785 x 3250 x 4305Details Photo:Transportation:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
