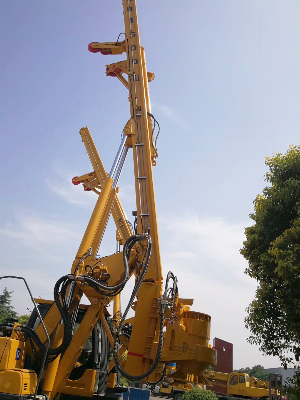

Product Description Hydraulic Rotary Drilling Rig XR150D Product Information:Adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearingto provide extraordinary stability and transport convenience.Cummins electric control turbo-supercharged engine to provide strong power and conformitywith Euro III emission standard. With the hydraulic pressure system adopted threshold powercontrol and negative flow control, the system acquired high efficiency and higher energyconservation.Using single rope winding, effectively solve the steel wire rope wear problem, improve the lifeof wire rope; And drill deep detection device is setted in main winding,single rope to make deepinspection more accurate.Several drilling rod configurations with different specification areavailable for efficient construction on different layers.The whole machine design meet the requirements of the CE directive, safety guarantee,construction safer. The optional centralized lubrication system, maintenance more convenient. The detachable unit head drive key can provide easy maintenance and replacement.Technical Data:DescriptionUnitParameter valueMax. drilling diametermm1500Max. drilling depthm56Allowable luffing scope (from center of drill rod to slewing center)mm3250~3650Drilling rig dimension in working condition (L × W × H)mm7550×4200×19040Drilling rig dimension in transport condition (L × W × H)mm13150×2960×3140Weight of overall unit (standard configuration, excluding drilling tool)t49EngineModel CUMMINS QSB7Rated power/speedkW150/(2050r/min)Max. working pressure of hydraulic systemMPa35Rotary driveMax. torquekN •m150Rotational speedr/min7~33Crowd cylinderMax. Pushing forcekN120Max. Pulling forcekN160Max.strokemm3500Main winchMax.pulling forcekN160Max. single-rope speedm/min72Diameter of the steel wire ropemm26Auxiliary winchMax.pulling forcekN50Max. single-rope speedm/min60Diameter of the steel wire ropemm16Drilling mastLeft/right inclination of mast°3/3Front/back inclination of mast°5/15Rotary table slewing angle°360TravelingMax. traveling speed of the overall unitkm/h2.1Max. climbable gradient of the overall unit%40CrawlerWidth of crawler platemm700External width of crawler (min.-max.)mm2960~4200Center distance between two longitudinal wheels of crawlermm4310Average ground pressurekPa83Details Photo:Transportation: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
