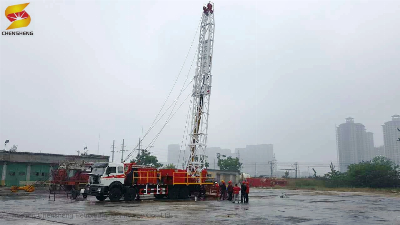

API Self Guyline Workover Rig Truck Mounted Drilling Rig

 XJ150/30t/40t workover single drum rig is designed and manufactured according to the principle " advanced performance, reliable operation, convenient mobilization, economic operation and meeting HSE requirement ". The performance and quality has reached or are beyond the advanced level of international similar workover rigs and confirming all the related APIs. Hydraulic systemFunction: hydraulic system is used for Leveling jacks, mast raising oil tank, mast telescoping oil tank, workover hydraulic clamp.Air systemThe pneumatic system mainly consists of air supply system, engine throttle control system and drawworks air control system. air supply system adopt gas source of vehicle and equipped with FRL Combination. Air control valve of main drum is installed in the operation room and used to control clutch of main drum, operation room is equipped with control valve of main drum, drawworks emergency braking valve, crash-proof reset valve, Electrical system  Lamps circuit for chassis: 24v Install side marker light according to GB4785, GB7258 and other compelling standard requirements. 1 direct current 24 v light for collar is supplied.No  ModelXJ150/40T XJ250/70T XJ350/90T XJ450/110T XJ550/135T XJ650/160T 1Power   HP1502503504505506502Rated load T305060801001203Max. load T4070901101351604Mast height  ft59/696995/102   102/108/115         118/1255Nominal small workover  depth m 2600320040005500700085006Large workover depth m-------200032004500580070007Wireline diameter mm19/2222                                      1"(26)  298Drive type6*4/8*46*68*810*810*8/12*812*89Traveling system 3×44×53×44×5 4×54×510Drawworks JC08JC12 JC18           JC21JC21/11JC21/1111Work platformPlatform area  4m×2.9 mAdjustable height range of platform:     1.2m-2.7m ------------------------12Substructure------------------------height :4.5m/5/6     area (L×W):5m×5.8m/7m13Rotary table------------------------ZP-175/205/215/27513Self supporting systemNo guy line anti-roll device and monitorThe self supporting system is composed of the rig's stable leg, anti-tilting instrument and internal guyline system. it no need outside guyline when it works.          /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
