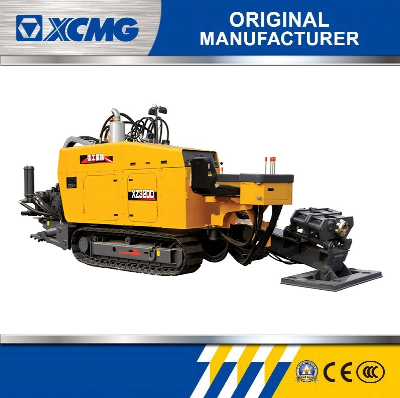

XCMG Xz320d Horizontal Directional Drilling Trenchless HDD Machine with Cummins Engine

Product DescriptionXCMG Xz320d Horizontal Directional Drilling Trenchless HDD Machine with Cummins EnginePatented technology of power head floating and vise floating can greatly protect the drill pipe thread to increase the service life of the drill pipe.High/low speed push-pull and rotation system in which the variable piston motor achieves the high/low push-pull speed of power head improves the ability to adapt to various working conditions and improves the construction efficiency of the drilling rig.The configuration is flexible and diverse. The whole machine can be equipped with automatic (semi-automatic) pipe loader, double automatic anchoring device, mud antifreeze, mud cleaning device, etc. It can also be equipped with more environmentally friendly and energy-saving engine.Product ParametersItem   UnitXZ320DEngineModel   QSB5.9-C210Rated powerKw/r/min154/2200Thrust-PullMax pull/ thrust forcekN320Max pull/ thrust speedm/min22RotationTorqueN.m12000Max spindle speedr/min140Mud pumpMax flow rateL/min320Max pressureMpa8PipeDiameter*Lengthmm*m73*3Truck-mountedLifting weightt   Loading capacityt.m   Max inclination angle°20Max backreamer diametermm900Weightt10Dimensionmm6500*2250*2450 Product PictureCompany ProfileFAQ1: What kind terms of payment can be accepted?A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.2: What certificates are available in Machinery?A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.3: What about the delivery time?A: 7-30 days after receiving the deposit.4: What about the warranty time?A: 12 months after shipment or 2000 working hours, whichever occuts first.5. What about the Minimum Order Quantity?A: The MOQ is 1 pcs. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
