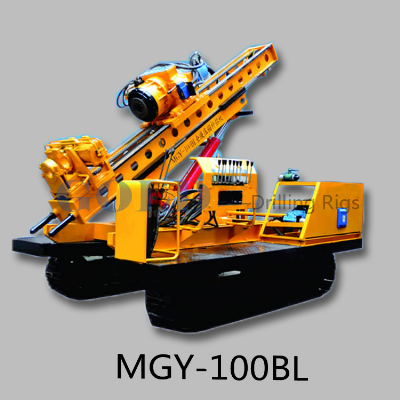

MGY-100BL Crawler Mounted Hydraulic Anchor Drilling Rig

  Product Description       MGY-100BL Hydraulic anchor drilling rig is new generation of hight-efficient hydraulic anchor drilling rig developed based on our MGY-100A and MGY-100B anchor drilling rig which are split-type of anchor drilling rig, can be widely used in the field of municipal construction deep excavation, bolt and cable construction, pipe roof construction, jet grouting hole and so on.       Features   High construction efficiency. As the rig uses a hydraulic chuck with large inner hole, a fixture 6m drill rod in one time, to reduce the numbers of adding and screw-off drill rod and improve the effective working time. As a result of crawler chassis drive, and the rig mast down or up of position adjustment of 400mm. Hole position adjustment time is greatly reduced. The rig has a holder, shackle device. Through cooperation with the operation of the power head chuck, to reduce the operator's labor intensity. The rig adapt to a wide processes. As the rig has a hydraulic chuck with inner hole diameter of Φ110 mm . No need to make any alteration of top-drive head, you can adapt a single tube, double tube, three tube to make jet-grouting, reverse circulation drilling and Φ108 pipe-roof construction.   Specifaction 1Theory hole diameterΦ110 ~ Φ4002theory drilling depth150 ~ 40 m3hole angle range-20 °~ 90  °4drill rodΦ89,Φ73,Φ89hexagonal drill rod:Φ89x79;Φ70x635Max.torque of top-drive head6500  Nm6rotation speed of top-drive head1:35,70.r/min; 2:70,140(r/min)7feed/lifting speed0-0.5m/s8pulling/pushing force80 / 57kN9Max. feed stroke1900mm+3200mm+1100mm=6200mm 10height of rotation centerMax.2150mm,Min.1750mm,height differential 400mm11gripping and screw-off deviceΦ120240KN,18KNm.12power unitelectric motor/diesel engine: 30kw13climbing angle30 º14crawling speed1.95Km/h15whole weight4500kg16Overall dimension(L*W*H) mm3800 x 2300 x 2000    Company Information Established in 2009. Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.   Contact Info Alvin Qin   Any of your requirements would be really appreciated ! Thanks. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
