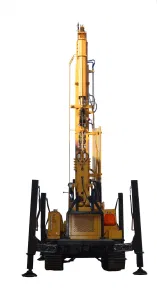

Bdy580 Water Well Crawler Drilling Rig Tools, Drilling Machine Tools

Basic Info.Model NO.BDY580CertificationISO 9001:2008Condition New Drill Hole Diameter165-305mmDrill Hole Depth350mBit TypeDTH Drill BitDrilling WayCompoundType Crawler Power MotorDoosan Brand, South KoreaWeight15.7tTrademarkBDTransport PackageContainerSpecification6500*2350*11090OriginXuanhuaHS Code84304190Product Description     The BDY580 utility well drilling rig is a new type of energy-saving and high-efficiency full hydraulic well drilling rig and is mainly used for drilling wells and the borehole drilling works of monitoring well, geothermal air-conditioning hole, grouting hole of building foundation excavation, grouting hole of hydraulic power cofferdam, anti-seepage grouting hole of dam, anti-seepage hole of dam, opencast mining, anchoring and national defense construction. The drilling rig is equipped with a high-power hydraulic motor, a hydraulic cylinder and a high-wind-pressure DTH hammer and therefore is more efficient in rock drilling than other kinds of drilling rigs. Drilling hole diameterφ165-305mmDrilling hole depth350mDrill pipe diameterφ89-127mmPropelling stroke5mPropelling force0--11TLifting force16TPropelling speed0--6.05m/minLifting speed4.14m/minRapid propelling speed19.6m/minRapid lifting speed13.4m/minRotary torque5427.8N.mRotation speed46.7rev/minRapid rotational speed93.4rev/minWinch tensile force4TLifting height9.5mRope releasing speed25.44m/minWinch tensile force1.5TTravelling speed2.133Km/hClimbing gradient15°Travelling driving force42495NTrack width500mmGround pressure0.0687MpaEngine power92KW/2000Oil pump specification56-56-25System pressure20MpaComplete machine weightApprox. 15.7TBoundary dimension (L×W×H)6500×2350×11090Transportation dimension (L×W×H)12000×2350×2850
