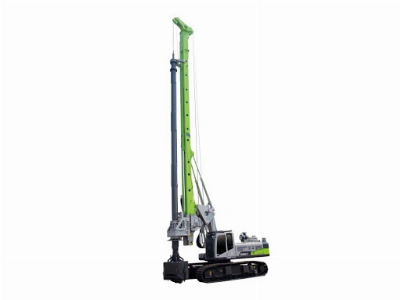

Zoomlion Portable Hydraulic Rotary Drilling Rig Zr360L

Zoomlion Portable Hydraulic Rotary Drilling Rig ZR360LProduct Description* Folding mast, overall transport height 3580mm.* One key for folding cathead , fixed mast support. Equipment can be transferred easily and quickly.* Stronger mast section, double movable booms with parallel luffing mechanism, large diameter slewing support, and reinforced chassis, which make the equipment more stable structure and stronger bearing capacity.* Rotary drive with three motors, which ensures large torque, high reserve coefficient and stronger construction capacity.* Using more flow main pump, multi-gear rotary head, and two-speed crowd cylinder, which ensures high construction efficiency.* The rear main winch with single-layer-rope drum and two reducers mechanism, which extends service life of the main winch rope significantly.* New generation cab with good vision and more comfortable operation. New electrical control panel. 360.full view monitoring.* Optional: Auto-lubrication.Main Parameter NAMESPEC.Torque(KN.M)360Drilling Diameter(mm)2500Drilling Depth(m)inter-locking58/65Friction88/100Drilling Speed(r/min)6~28Engine Model QSM11Rated Power(kw)298Rated Engine Speed(r/min)1900Max.Crowd Force(kN)300Max.Crowd Cylinder Pull(kN)360Line Pull(main winch)(kN)340Line Speed(main winch)(m/min)72Line Pull(aux.winch)(kN)90Line Speed(aux.winch)(m/min)70Operating Mass(t)108Traction Force(kN)560Rope diameter(Main winch)(mm)36Rope diameter(auxiliary winch)(mm)22 Product Show   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
