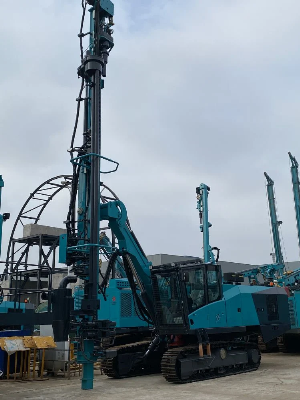

Sunward Blasting Drilling Rig Machine Swde165A/B Mine DTH Drilling Rig

SUNWARD Blasting Drilling Rig Machine SWDE165A/B Mine DTH Drilling Rig Product Description1.  It is suitable for blasting drilling in small, medium and large open-pit mines, quarries and various bench excavation;2.  High-strength, multi-degree-of-freedom drill boom, multi-directional drilling, horizontal holes, vertical holes and other angles are extremely flexible;   3. Floating chassis, track frame swing angle ±10°, large driving force, fast walking speed, strong off-road ability, more suitable for rugged workplaces;   4. The overall structure is compact, the transportation size is small, and the transition is convenient.   Specification Model SWDE165A Operation parameters Drilling range 138-180mm Drill rod diameter 114mm Max. depth 36m Dust collection device dry type Air compressor Working pressure 2.0Mpa Displacement 24.1 cubic meter/min Power 262.5kw/1900rpm Engine Manufacturer CUMMINS Power 97kw/2200rpm Fuel tank capacity 800L Feed Feed rate, max. 0.8m/s Feed force 40KN Forward tilting angle 140 degrees Boom Full length 3200mm Oscillating angle L15 R45 Travel capability Traveling speed 3.2km/h Traction force max. 125KN Gradeability 25° Ground clearance 480mm Rotary Rotary speed 105rpm Rotary torque 5500Nm Product PicturesCompany information  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
