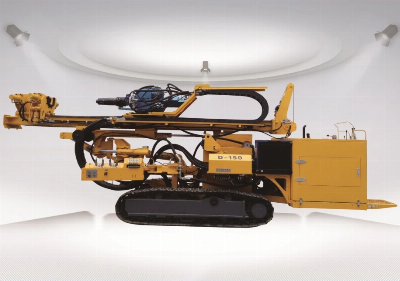

D-150 Electric Sand Gravel Slope Anchor Drilling Rig

D-150 Multifunctional Hydraulic Anchor Drill RigProduct DescriptionTechnical ParametersModel   D-150Power parameter     Power type   Electric poweredMax. power output (KW)   110Mode of operation   Rotary/PercussiveElectric system (V)   24Fuel tank capacity (L)   501st circuit operating pressure (Mpa)   0-242nd circuit operating pressure (Mpa)   0-243rd circuit operating pressure (Mpa)   0-20Hydr. oil tank capacity (L)   450Feed stroke (mm)   3500Feed force (KN)   35Retraction force (KN)   65Feed rate (m/min)Low0-22High0-61Retraction rate (m/min)Low0-11High0-31Percussion Frequency (Times/min)   0-1150Max. torque (N•m)   12500Rotating (r/min)   0-34     0-480-55     0-67  0-78     0-950-100   0-155Transport dimensions(L*W*H)(mm)   6700*2000*2600Weight (Kg)   9000Note: The positioning movement of D-150 drill rig can be powered either by diesel engine or electric motor.D-150 Anchor Drilling Rig  The lately developed D-150 drill rig is electric powered lightweight anchor drill rig used for diverse drilling techniques for anchor drilling projects, such as auger drilling, single pipe drilling, dual pipe drilling and self-drill anchor drilling. Electric powered D-150 drill rig at drilling operation makes it more energy saving and environment friendly. With powerful hydraulic hammer equipped on the top head of the drill rig, it is applicable to diverse difficult drilling strata with higher drilling speed. For facilitate movement of the drill rig when there is inconvenient for connecting electric power, the small diesel engine is mounted on the drill rig, which is quite useful for locating itself to position.   Please see pictures of Operation Panel, Top-drive Power Head, Top Drive Power Head Side Shift, Holder, Double Chain Hoisting, Control Box, etc.Packing and TransportPacking: Seaworthy PackingDelivery: about 30 days after your down payment.   Application  Related ProductsCompany ProfileGlorytek Industry (Beijing)Co.,Ltd.,located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.   Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.     Latest Exhibition  Certifications   Customer Photos  After-sale Warranty(1) Within the period of the first year after delivery, the main parts of Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.    (2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.    (3)Timely after-sale assistance shall be provided all the time.FAQQ: Are you original manufacturer or trading company?A: We are an integrated corporation specialized in manufacturing and exporting.Q: Can you supply related drilling tools?A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit.Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.Q: Which payment terms can you accept?A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.Q: How is your delivery time?A: This will depend on your purchasing quantity. Normally we can deliver within 30days.Q: How can you ensure the quality?A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.Contact UsJane Cheng Sales Representative Glorytek Industry ( Beijing ) Co., Ltd. Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China. Tel: +86-10-52864265/52864786 Fax: +86-10-52037270 Mobile:+86-13426420230 Website:  glorytek.en.made-in-china.com    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
