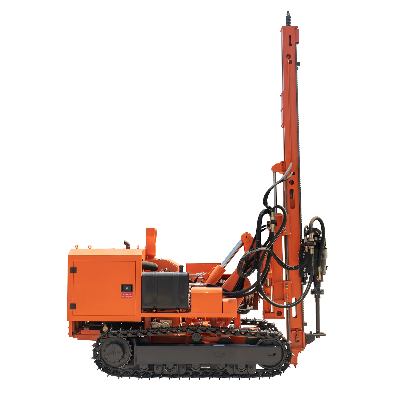

Hydraulic Quarry Mining and Down The Hole Drill Rig

Product IntroductionMZ385Y-2 Hydraulic Quarry Mining and Down The Hole Drill Rig, uses new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact, and the mast has adjustable compensation function. When drilling, the mast supported on the ground, borehole stability is good. MZ385Y-2 Hydraulic Quarry Mining and Down The Hole Drill Rig is mainly used for piling, anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.Technical Data Bore diameter(mm)90-400Bore depth(m)0-100Air consumption(m³/min)10-26Air pressure(Mpa)0.7-1.6(medium pressure)1.6-2.46(high pressure)Pipe diameter(mm)76/89/102For rock(F)6-20Bore diameter(screw)(mm)Max 400Bore depth(m)0-30Screw pipe diameter(mm)130-400Once promotion(mm)3200Skid pitch(°)120Swinging angle of skid(°)  Left Right Total  40 Boom swing angle(°)Left Right Total  45Rotation Speed(r/min)0-110Host Power (Kw)84Climb ability(°)35Dimension(L*W*H)(mm)    5300*1970*2635weight(Kg)5900Walk speed(km/h)0-2.5Product Display Company ProfileShipping and PackageCustomer Visit FAQQ1: What's your delivery time?A: 15 days to produce, within 3 days if in stock. Q2: What's methods of payments are accepted?A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal. Q3: What about the shipments and package?A: 40' container for 2 sets, 20' container for 1 set, Machine in nude packing, spare parts in standard export wooden box. Q4: Have you got any certificate?A:We have got ISO,CE certificate. Q5: How to control the quality?A: We will control the quality by ISO and CE requests. Q6: Do you have after-sale service and warranty service ?A: Yes, we have.We can supply instruction for  operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.Warranty is one year  for the machine. Contact : Tinyu  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
