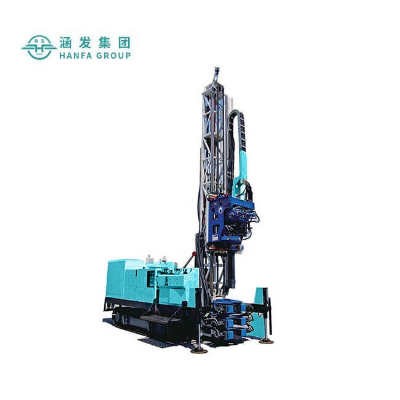

Hfsf-200s High Security Exploration Deep Well Sonic Drilling Rig

Product Description                                                                                                                                                    Heavy duty drills with great power offering the best performance with wider applications in the drilling for deeper and more complex investigation, geological investigation, environmental protection and investigation, geothermal hole, gold placer investigation, dam and tailing monitoring hole, ocean engineering survey and water well, etc.Application                                                                                                                                   Geological investigationEnvironmental protection and investigationBorehole drilling for geothermalGold placer investigationDam and tailing monitoring holeOcean Engineering surveyBorehole for water wellTechnical Data                                                                                                                               Model HFSF-200SAbilityhole depth m  100-200hole diameter mm76-168Drill Angle 0-90°Drill headRotary speed rpm0-52/103Torque Nm9300/3900frequency(CPM)6000Vibrator force KN200weight Kg1800Winch  Pulling force KN25Diameter of wire rope mm*m7*50Feeding SystemPressure KN50Pressure speed m/min11.3; 72Pulling force KN75Pulling speed m/min7.8; 50Feeding Stroke mm3500Diesel powerPower KW  160Rotary speed rpm2200Approx.weight (T) 12Outside dimensionL*W*H (mm) Transportation  8130X2300X3270L*W*H (mm) Working5130X2300X8200                                                               Working Site                                                                                                                                                                   Company Introduction                                                                                                                                                                                                Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water wellfield, with the ability to research,manufacture and market. Now, the Group pursues high standardmanufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drillingrig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainlyused in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well,geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National ScientificResearch Achievement Prize. All the products have passed the quality system certification of ISO9001:2000and are national inspection-free products.1. More than 30 years of experience The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it,we will arrange a pick-up.2.Top production team The transportation and packaging will be packaged in international standards. If you have special packagingrequirements, we will give you the most suitable solution.3.Our Service - New machine provides technical trair.- Once anything goes wrong with the machine by normal using, our technical person must appear at the firsttime no matter where you are.- When the machine should be maintained, you will receive the reminding from us.- According to different geological conditions, we will recommend different construction plans for you- Remind you which are wearing parts, so you can prepare enough.- 24 hours respond to your quality problem.Workshop                                                                                                                                    Our Customers                                                                                                                                      Service                                                                                                                                         Our Honor                                                                                                                                    FAQ                                                                                                                                                                                                                                 1, Are you trading company or manufacturer?We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig,DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, SouthAmerica, Africa, and get a good reputation in the world.2, Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department forchecking every machine before leaving our factory.3, How about your machine quality? All of our machines hold the ISO, QC and TUV certificate, and each set of machine must
