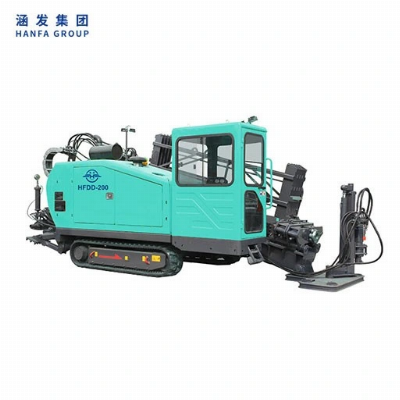

Hfdd-200 Drilling Machine Horizontal Directional Drilling Rig for Sale

ApplicationIt's applicable for pipeline construction about Municipal Construction (Electric,Communication,Water Supply) and Natural Gas,Oil Delivery. Technical Features1. Hydraulic pilot control, with comfortable operability and flexible adjustment ability, 1. Hydraulic pilot control, with comfortable operability and flexible adjustment ability, first-class brand hydraulic components to ensure the reliability of the whole hydraulic system;2. The proprietary patented power head floating and vice floating technology can greatly protect the drill pipe thread and improve the service life of the drill pipe;3. The whole machine has passed CE safety certification, which ensures safety and safer construction. EngineModelCumminsQSB5.9-C150Rated power113/220 kW/r/minPush and pullMaximum pushing force225 kNMaximum push-pull speed32 m/minRotateTorque6350N.mMaximum speed160 r/minMud pumpMaximum flow250 L/minMaximum pressure8 MPaDrill pipe60*3 mm*mTruck mounted craneLifting weight/ tLifting moment/ t.mMax. penetration angle22°Max. back expansion diameter600mmQuality8.5tOverall dimension5900*2250*2400mm /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
