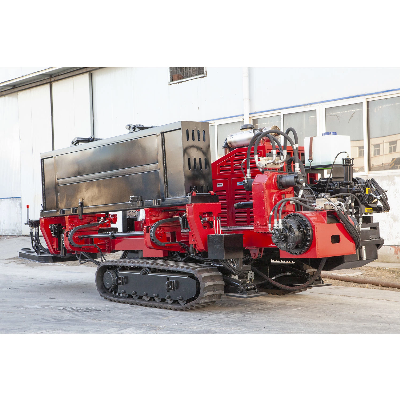

Horizontal Directional Drilling Rig Ddw-180 for Pipelaying

Horizontal Directional Drilling Rig DDW-180 for Pipelaying Technical Specifications DimensionsLength/Width/HeightEntry angle Machine weight Track width5300*2050*2100 mm14-19º6 ton320 mmEngineMakeGross power ratingRated speed Fuel tank capacityCummins 82 KW2400 rpm160 LDrilling unitTravelSpeedRear stabilizerHydraulic hose carrierLighting systemself-propelled on rubber track crawler 0-2.0 km/h, forward & reverse2chain typecabin, rotary headHydraulic systemMax pressure (rotary & carriage)Max pressure (control sys.)Hydraulic tank capacity23 Mpa20 Mpa355 LOperator stationCabin Control systemOperation controlsCanopy or full closed, climate control with A/CHydraulic pilot valve controlHydraulic leversRotary drive Maximum rotary torqueMaximum rotary speedDrive shaft floating7000 Nm90 r/min,65 mmCarriageCarriage systemMaximum thrust/pullback forceMax travel speed Max travel distance Motor and chain drive180KN23 m/min3.2 mWrench assembly Wrench designMax breakout torqueMax makeup force Clamp/grip rangeopen-top style15000 Nm150 KN58 -72 mmPipe loaderAutomatic pipe loaderMagazine capacityuses 3 m drill stem.48 pipes per boxStake down systemStake down operationStake down anchorsHydraulic 1Mud pumpOnboard mud pumpVolume rateMaximum pressuretriplex piston pump240 L/min8 MpaMud minxing unitTank capacityMud pipe inlet1.7 m32" * 8 mDrill pipe Length ( each section) Outside tube diameterThread type3000 mm60 mm60 double shoulderPilot drill bitBeacon housingsuitable for wireless/wireline transmitterToolsBack reamer Diameter 160,240,330, 430, 530, 630 mm   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
