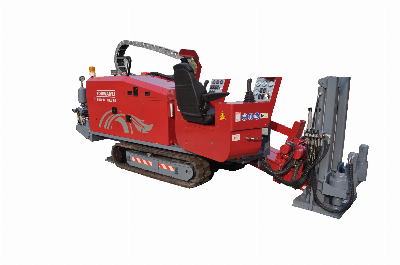

Rx7X17 Forward Horizontal Directional Drill Rig

Horizontal directional drilling rig FORWARD RX7x17FORWARD RX7x17  rig  is equipped with reliable hydraulics of European and American world known brands: SAUER DANFOSS, EATON, KTR, HYDRO CONTROL, durable drilling tool made of high-solid steel.RX7x17is oriented to work in confined urban conditions in the construction of pipelines for various purposes, including fiber optic and power lines, water, gas, oil, etc.RX7x17 is equipped with motor power of 48 kW. A unique system of rotation and the feed-traction provides traction up to 7 700 kg and spindle torque up to 1700N.m. The maximum rotation speed is 180 rpm and a feed rate of 42m/min-traction guarantees the high efficiency of operationthe anchor hydraulic system shorten running period and increase productivity. Due to the maximum elevation angle of 25 ° rig can drive on any truck.RX7x17 is standing stable on rubble track. It increases reliability of the rig and not damages asphalt surface. Drilling rig also has engine and hydraulic oil preheating system.To increase the angle of the rig  RX7x17 is provided with a sliding support frame. General Dimensions and Weights   Length4800mm width1200mm Weight3500 Kg   Engine   Make and ModelYanmar deisel engine (made in Japan) Fuel TypeDiesel Gross horsepower47.4 Kw AspirationTurbochargedOperational   Thrust70 KN Pullback70 KN Max. Carriage speed 45 m/min Max. Spindle Torque1700 Nm Max. Spindle Speed180 RPM Max Ground Drive Speed 4.5 Km/h   Deilling Fluid System   Max. Flow80 L/min Max.Pressure8 Mpa   Drill Pipe   Thread TypeFirestick (200#) Rod Dia. 48 mm Rod Length1800 mm  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
