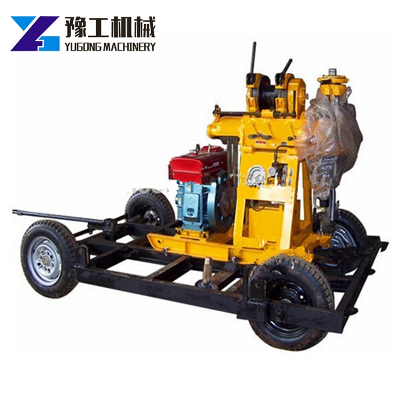

200m Trailer Mounted Water Well Borehole Drilling Rig

Product DescriptionHydraulic core drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.Main features:1.The rig is equipped with latest MW525 heavy truck transimission which owns 10 forward gears and 2 reverse gears.The transmission ensures enough reasonable speed range and can satisfy needs of different drilling technology.2.The rig's spindle inner diameter is 96mm driven by mechanical systems can output big torque.The winch can lift max 3000kg with single line.3.Hydraulic system controls the feeding pressure and speed of the spindle.The machine is equipped with pressure meter so that the worker can grasp the hole situation.  Technical parameter ModelXYX-3Drill depth600mOpening hole diameter325mmEnd hole diameter75mmDrill angle90-75°Drill pipe diameter42-60mmMatching powerYunnei YN27/ 42kwWeight without power3600kgSize2.9*2.56*3.3mSpindleVertical spindle speed32-1057 r/minVertical stroke600mmWinchMax pull force3000kgPull speed0.3-1.9m/sRope diameter12.5mmWire rope capacity65mDrill mastRated load18tEffective height7.5mMud pumpTypeBW-250Flow250L/minEngine15kwWork pressure80kg/cm2Inlet pipe diameter75mmOutlet pipe diameter50mm     Product Overviews We also have tralier wheel type more convenient to move     Pls tell the following information so that we can recommand suitable rig and give best price1.what's your application?for water well or geological exploration2.what's the drilling diameter and depth?3.drill soil or rock? Packaging & Shipping Company InformationHenan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!    FAQQ1: How long is your delivery time?A1: It is according to the model and quantity.    Generally it is 3-5 days if the machines are in stock.     It will be 15-30 days if you want to customize the machines. Q2: What is your terms of payment?A2: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.     Payment=USD 5000, 30% T/T in advance, balance before shipment. Contact Us  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
