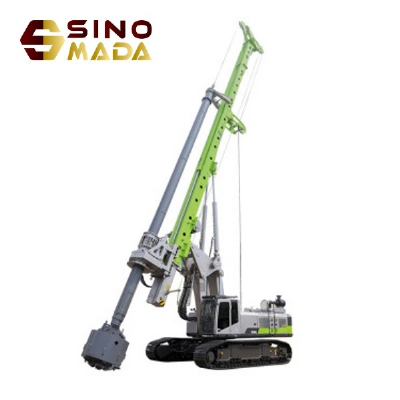

Sinomada Drilling Machinery Rotary Drilling Rig Zr185c-3 with Spare Parts

SINOMADA Drilling Machinery Rotary Drilling Rig ZR185C-3 with Spare PartsProduct DescriptionThe whole machine can be transported with Kelly bar to realize quick transfer between operation and transportation.Only one trailer for the whole machine, each time the transportation cost is saved by 30%.Stronger construction ability due to rotary drive with large torque.High construction efficiency due to big flow main pump, multi-gear rotary drive, and two-speed crowd cylinder.More stable structure and stronger bearing capacity due to enhanced mast section, lower center of gravity, large slewing support, and reinforced chassis.New generation cab with better vision, more comfortable operation, new electrical control panel. 360 degree full view monitoring.Options:Remote control, auto-lubrication, spin-off.Product Parameters NAMESPEC.Torque(KN.M)185Drilling Diameter(mm)1500Drilling Depth(m)inter-locking44Friction56/62Drilling Speed(r/min)5~33 / 5~45Engine ModelTop Brand 6C 8.3Rated Power(kw)186Rated Engine Speed(r/min)2000Max.Crowd Force(kN)160Max.Crowd Cylinder Pull(kN)160Line Pull(main winch)(kN)160Line Speed(main winch)(m/min)73Line Pull(aux.winch)(kN)60Line Speed(aux.winch)(m/min)80Operating Mass(t)50Traction Force(kN)330Rope diameter(Main winch)(mm)26Rope diameter(auxiliary winch)(mm)18Detailed PhotosCompany Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
